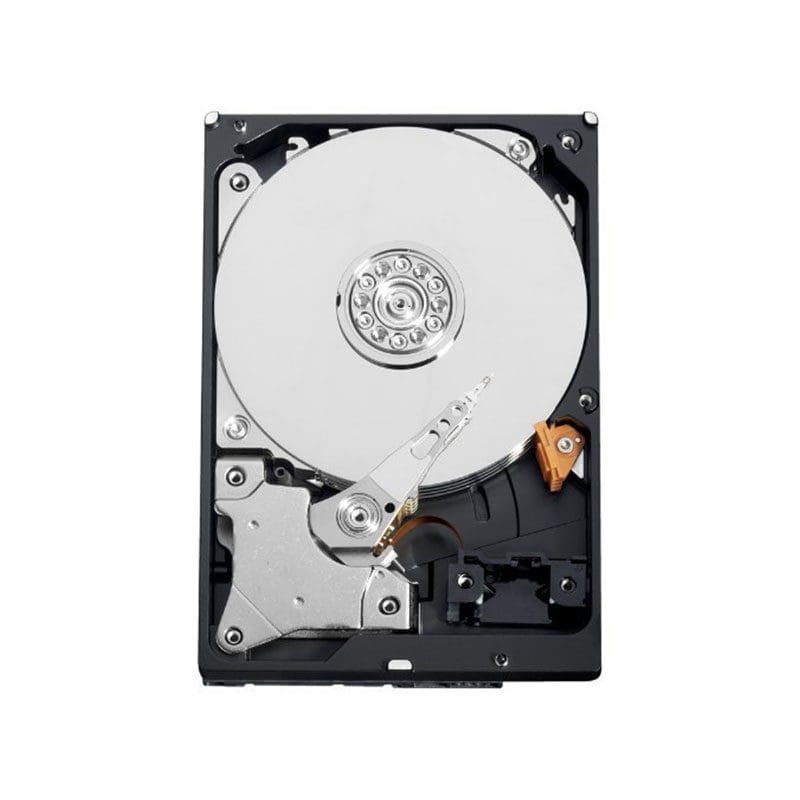

HUS103030FLF210 Hitachi Ultrastar 10K300 300GB 3.5-inch Hard Drive

HUS103030FLF210 Specifications

Hitachi Ultrastar 10K300 300 GB 3.5″ 10,000 RPM Fibre Channel HDD

Manufacturer: Hitachi Global Storage Technologies
Manufacturer Model: HUS103030FLF210
Product Line: Ultrastar 10K300
Product Series: Enterprise Fibre Channel HDD
Product Type: Internal Hard Disk Drive
Product Name: Hitachi Ultrastar 10K300 300 GB 3.5″ 10K RPM Fibre Channel HDD

KEY FEATURES:
Storage Capacity: 300 GB
Interface Type: Fibre Channel (2 Gb/s FC‑AL)
Form Factor: 3.5‑inch, 26.1 mm height
Drive Speed: 10,000 RPM
Cache/Buffer: 16 MB
Compatibility: Enterprise storage arrays, SAN, mission‑critical applications
Features Supported: 10K RPM performance, S.M.A.R.T. monitoring, Rotational Vibration Safeguard (RVS) for multi‑drive systems, mature enterprise design

PERFORMANCE:
Maximum External I/O Transfer Rate: Up to 200 MB/s
Sustained Transfer Rate (Typical): ~46.8 to ~89.3 MB/s
Average Latency: ~2.99 ms
Seek Time (Read, Typical): ~4.7 ms
Number of Disks/Heads: 5 disks / 10 heads

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: 5 °C to 55 °C
Storage Temperature Range: ‑40 °C to 70 °C
Operating Shock Resistance: 15 G (half‑sine wave, 11 ms)
Non‑operating Shock Resistance: 250 G (2 ms)
Vibration Resistance (Operating Random): 1.0 G RMS (5‑500 Hz)
Unrecoverable Read Error Rate (UBER): 1 in 10¹⁶ bits read
Power Consumption (Idle): ~13.4 W
Start‑up Current: ~2.45 A @ 12 V and ~1.10 A @ 5 V

PHYSICAL:
Dimensions (W × D × H): 101.6 mm × 147.0 mm × 26.1 mm
Weight: Typical ~750 g
Color: Standard metallic silver enterprise HDD enclosure
