HMA41GR7AFR8N-UH Hynix 8GB PC4-19200 DDR4-2400MHz

HMA41GR7AFR8N-UH Specifications

Hynix 16GB DDR4 2933MHz ECC Registered DIMM

Manufacturer: Hynix
Manufacturer Model: HMA41GR7AFR8N-UH
Product Line: Hynix DDR4 Memory
Product Type: Server Memory Module (DIMM)
Product Name: Hynix 16GB DDR4 2933MHz ECC Registered DIMM

KEY FEATURES:
Memory Capacity: 16GB
Memory Type: DDR4 SDRAM
Form Factor: 288-pin DIMM
Speed: 2933 MT/s (PC4-23400)
ECC: Yes, Error-Correcting Code
Registered/Buffered: Yes
Voltage: 1.2V
Compatibility: Designed for servers supporting DDR4 ECC RDIMM
Features Supported: ECC error correction, Registered/Buffered reliability

PERFORMANCE:
Maximum Data Transfer Rate: 23.5 GB/s
CAS Latency: CL21 (typical)
Random Read IOPS: Not explicitly specified
Random Write IOPS: Not explicitly specified
Sequential Read Speed: Not explicitly specified
Sequential Write Speed: Not explicitly specified

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: 0°C to 85°C
Storage Temperature Range: -55°C to 100°C
Operating Humidity: 5% to 95% (non-condensing)
Shock Resistance: Compliant with JEDEC standards
Vibration Resistance: Compliant with JEDEC standards

PHYSICAL:
Dimensions (W x D x H): Standard 288-pin DIMM (~133.35mm x 30mm x 3.2mm)
Weight: ~50 grams

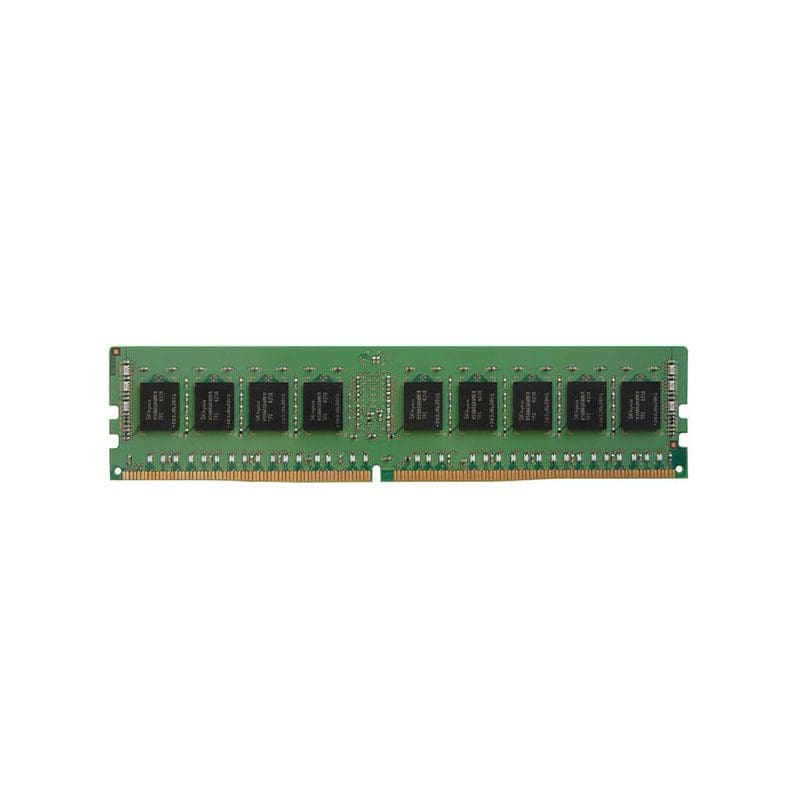

Color: Green PCB with black DRAM chips
