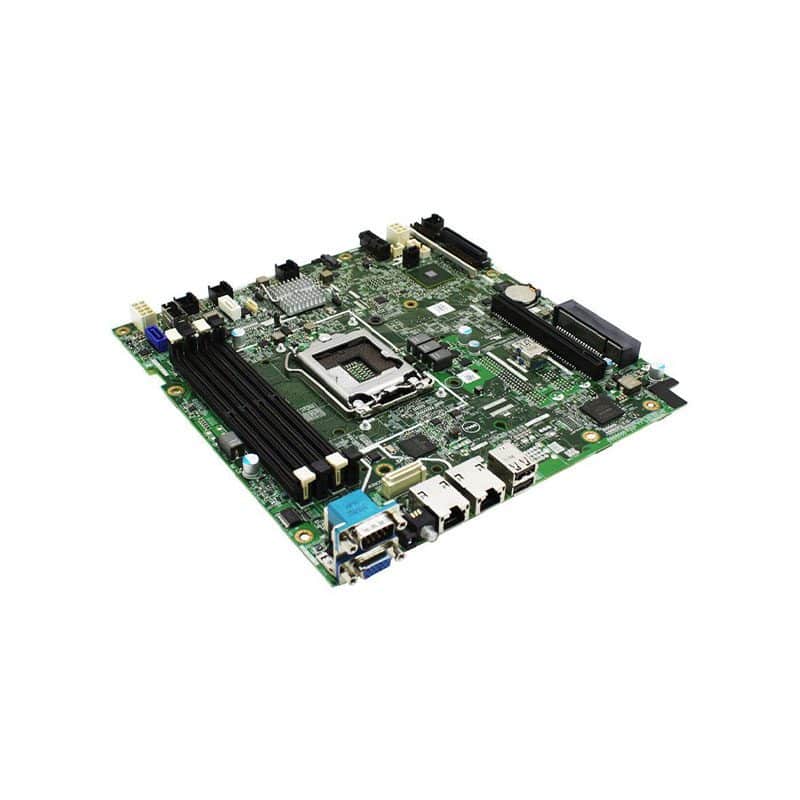

H5N7P Dell System Board (Motherboard) for PowerEdge R330 Server

H5N7P Specifications

Dell PowerEdge R330 System Board

Manufacturer: Dell
Manufacturer Model: H5N7P
Product Line: Dell PowerEdge
Product Series: R330
Product Type: Server Motherboard / System Board
Product Name: Dell PowerEdge R330 H5N7P System Board

KEY FEATURES:
CPU Support: Intel Xeon E3‑1200 v5 / v6, Core i3, Pentium, Celeron
Socket Type: LGA 1151
Memory: 4 × DDR4 UDIMM slots
Maximum Memory Capacity: Up to 64 GB
Chipset: Intel C236
Expansion / I/O: 2 × PCIe 3.0 slots + 1 internal storage slot
Networking: 2 × 1 GbE onboard
Compatibility: Designed for Dell PowerEdge R330 servers
Features Supported: ECC memory support, server-class reliability

PERFORMANCE:
Maximum Memory: 64 GB
Supported Processors: Up to 4-core / 4–8 thread (depending on E3 model)
Data Throughput / Bandwidth: PCIe Gen3, dependent on CPU and riser configuration
Random Read IOPS: Not explicitly specified
Random Write IOPS: Not explicitly specified
Sequential Read Speed: Not explicitly specified
Sequential Write Speed: Not explicitly specified

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: Typical data center / server-room
Storage Temperature Range: Not explicitly specified
Operating Humidity: Not explicitly specified
Shock Resistance: Enterprise-class server tolerances
Vibration Resistance: Enterprise-class server tolerances

PHYSICAL:
Form Factor: Proprietary server motherboard for Dell PowerEdge R330
Dimensions (W x D x H): ~325 mm × 270 mm
Weight: Approx. 1.3 kg
Color: Not explicitly specified
