H5‑25434‑00 Specifications

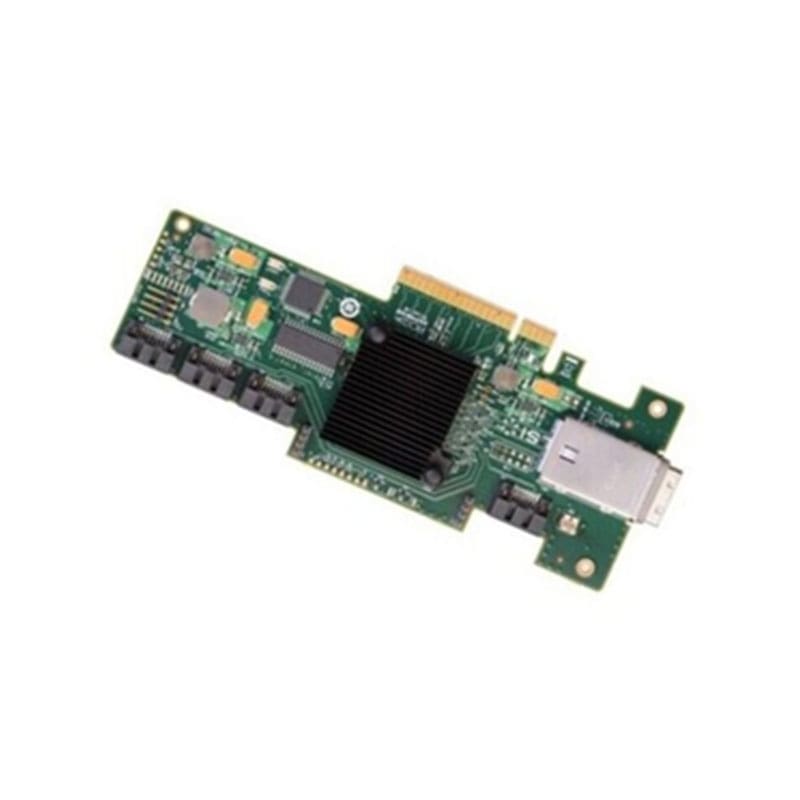

Broadcom / LSI Logic SAS 9207‑4i4e 6 Gb/s 8‑Port Internal/External PCIe Host Bus Adapter (HBA)

Manufacturer: Broadcom / LSI Logic
Manufacturer Model: H5‑25434‑00 (LSI00303)
Product Line: SAS 9207 Series
Product Series: SAS 9207‑4i4e
Product Type: PCIe Host Bus Adapter (HBA) / SAS/SATA Controller
Product Name: Broadcom / LSI SAS 9207‑4i4e Host Bus Adapter

KEY FEATURES:

Internal Ports: 4 SAS/SATA ports (6 Gb/s each)

External Ports: 4 SAS/SATA ports (6 Gb/s each)

Total Ports: 8 SAS/SATA

Connector Types: 1 × internal Mini‑SAS (SFF‑8087), 1 × external Mini‑SAS (SFF‑8088)

Host Bus Interface: PCI Express 3.0 ×8

Controller Architecture: LSI SAS2308 / Fusion‑MPT 2.0

Protocol Support: SAS 2.1 compliant (SAS and SATA devices)

Device Support: Up to 256 connected SAS or SATA devices

PERFORMANCE:

Data Transfer Rate: Up to 6 Gb/s per port

PCIe Throughput: PCIe 3.0 ×8 (~8 GB/s aggregate)

Designed for scalable internal plus external storage configurations

Backwards compatible with 1.5/3.0 Gb/s SAS/SATA speeds

ENVIRONMENTAL & RELIABILITY:

Designed for enterprise server and storage environments

Operating Temperature: ~0 °C to ~55 °C

Storage Temperature: ~‑45 °C to ~105 °C

Relative Humidity: 5 % to 90 % non‑condensing

MTBF: >2,000,000 hours typical

Regulatory: RoHS and environment‑friendly compliant

Warranty: ~3 years typical

PHYSICAL:

Form Factor: PCIe add‑in card

Card Size: Low‑profile (approx. 2.6″ × 6.6″)

Bracket: Includes low‑profile and full‑height brackets

Cable Support: Passive copper SAS cables
