GUPXC37LFIS Specifications

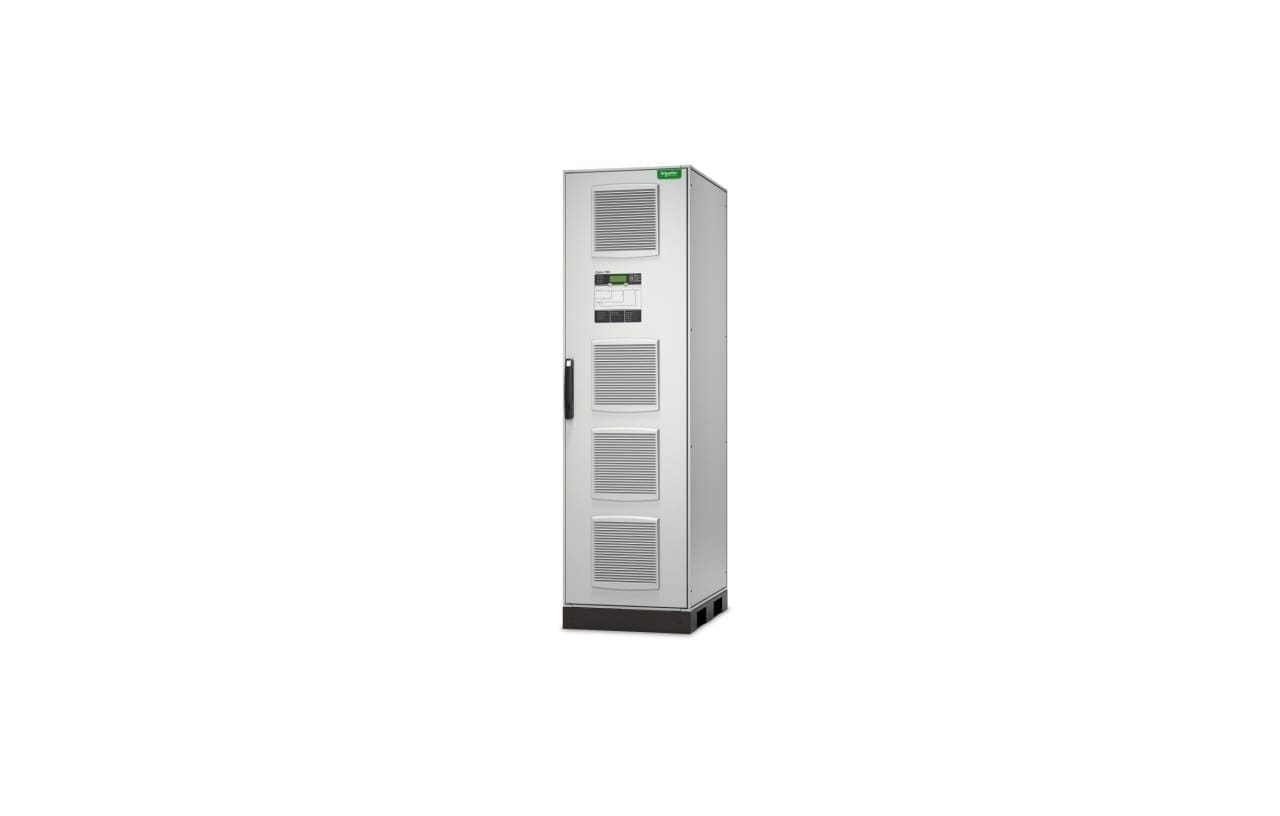

GUTOR PXC UL 37.5 kVA, 600/208 V ISO Transformer — Single Feed, Start‑Up Package
Manufacturer: GUTOR (APC)
Manufacturer Model: GUPXC37LFIS
Product Line: GUTOR PXC Series / Industrial / Data‑Center Power Protection
Product Type: Transformer / Power‑Protection Unit
Product Name: GUTOR PXC UL 37.5 kVA 600/208 V ISO Transformer (Single Feed, Start‑Up)
KEY FEATURES:
Max Configurable Power: 37.5 kVA / 37.5 kW
Input Voltage: 600/208 V
Output Voltage: 208 V (ISO feed)
Output Frequency: 60 Hz ± 0.1% (when not synced to mains)
Load Crest Factor: 3:1
Output Voltage Distortion: < 2%
Output THD (Total Harmonic Distortion): < 2% for 0–100% linear load, < 5% for full nonlinear load
Overload Tolerance: 150% for 1 minute, 125% for 10 minutes
Bypass: Built-in bypass path supported
Battery Configuration: Uses external battery system (no internal battery)
Communications / Management: SmartSlot capable (pre‑installed SmartSlot card)
Status & Control Interface: Multi‑function LCD console, audible and visible alarms prioritized by severity
PERFORMANCE:
Output Power: 37.5 kVA / 37.5 kW
Stable sine‑wave output with low distortion up to full rated load
Non‑linear load support with acceptable THD under load
ENVIRONMENTAL & RELIABILITY:
Designed for data‑center and industrial environments
External battery system support for scalable runtime
Includes built‑in bypass for redundancy / maintenance support
SmartSlot‑based management/monitoring for integration with infrastructure monitoring
PHYSICAL:
Configuration: Single‑feed, ISO‑style transformer package
Dimensions (max): Height 210.0 cm, Width 60.0 cm, Depth 80.0 cm
Weight (net): approx. 721.0 kg
Color / Casing: Light grey industrial enclosure
