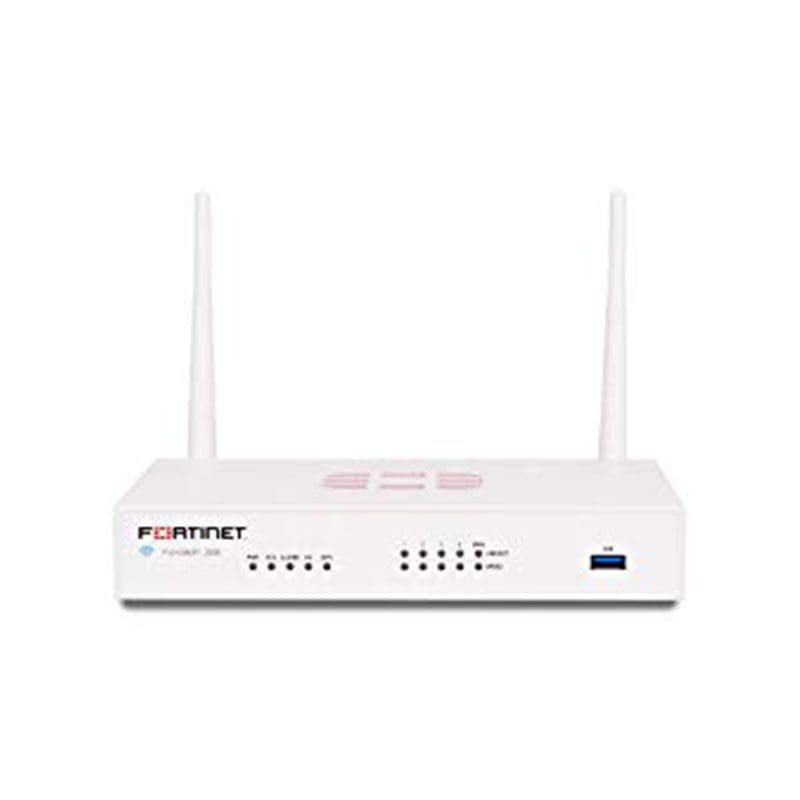

FWF-30E-BDL-950-12 Fortinet FortiWifi 30E Network Security/Firewall

FWF-30E-BDL-950-12 Specifications

Fortinet FortiWiFi 30E Network Security/Firewall Appliance with Unified Threat Protection Bundle

Manufacturer: Fortinet
Manufacturer Model: FWF‑30E‑BDL‑950‑12
Product Line: FortiWiFi
Product Series: 30E
Product Type: Network Security/Firewall Appliance
Product Name: FortiWiFi 30E Network Security/Firewall Appliance with Unified Threat Protection Bundle

KEY FEATURES:
Firewall Throughput: 950 Mbps
IPS Throughput (Enterprise Mix): 300 Mbps
Next‑Generation Firewall (NGFW) Throughput: 200 Mbps
Threat Protection Throughput: 150 Mbps
Concurrent Sessions (TCP): 900,000
New Sessions per Second (TCP): 15,000
Firewall Policies Supported: 5,000
IPsec VPN Throughput: 75 Mbps
Gateway‑to‑Gateway IPsec VPN Tunnels: 200
Client‑to‑Gateway IPsec VPN Tunnels: 250
SSL‑VPN Throughput: 35 Mbps
Recommended Maximum Concurrent SSL‑VPN Users (Tunnel Mode): 80
SSL Inspection Throughput (HTTPS): ~160 Mbps
Application Control Throughput (HTTP 64K): 400 Mbps
CAPWAP Throughput (HTTP 64K): 850 Mbps
Virtual Domains (Default / Maximum): 5 / 5
Maximum FortiSwitches Supported: 8
Maximum FortiAPs (Total / Tunnel Mode): 2 / 2
Maximum FortiTokens Supported: 20
Maximum Registered FortiClients: 200
High Availability Configurations: Active/Active, Active/Passive, Clustering
Interfaces: 4× GE RJ45 LAN + 1× GE RJ45 WAN, 1× USB, 1× Console
Wireless: IEEE 802.11 a/b/g/n
Security Services: FortiGuard Unified Threat Protection package included (1‑year)
Manageable: Yes

PERFORMANCE:
Firewall Throughput: 950 Mbps
IPS Throughput: 300 Mbps
NGFW Throughput: 200 Mbps
Threat Protection Throughput: 150 Mbps
Concurrent Sessions (TCP): 900,000
New Sessions per Second (TCP): 15,000
IPsec VPN Throughput: 75 Mbps
SSL‑VPN Throughput: 35 Mbps

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: 32–104 °F (0–40 °C)
Storage Temperature Range: –31–158 °F (–35–70 °C)
Operating Humidity: 10–90% non‑condensing
Shock Resistance: Not explicitly specified
Vibration Resistance: Not explicitly specified

PHYSICAL:
Dimensions (H × W × D): 1.61 × 8.27 × 5.24 inches (41 × 210 × 133 mm)
Weight: ~2.008 lb (0.911 kg)
Color: Not explicitly specified
Form Factor: Desktop
Power Supply: External DC Power Adapter, 100–240 V AC, 50–60 Hz
Power Consumption (Average / Maximum): 19 / 16 W
Noise Level: Fan‑less, 0 dBA
