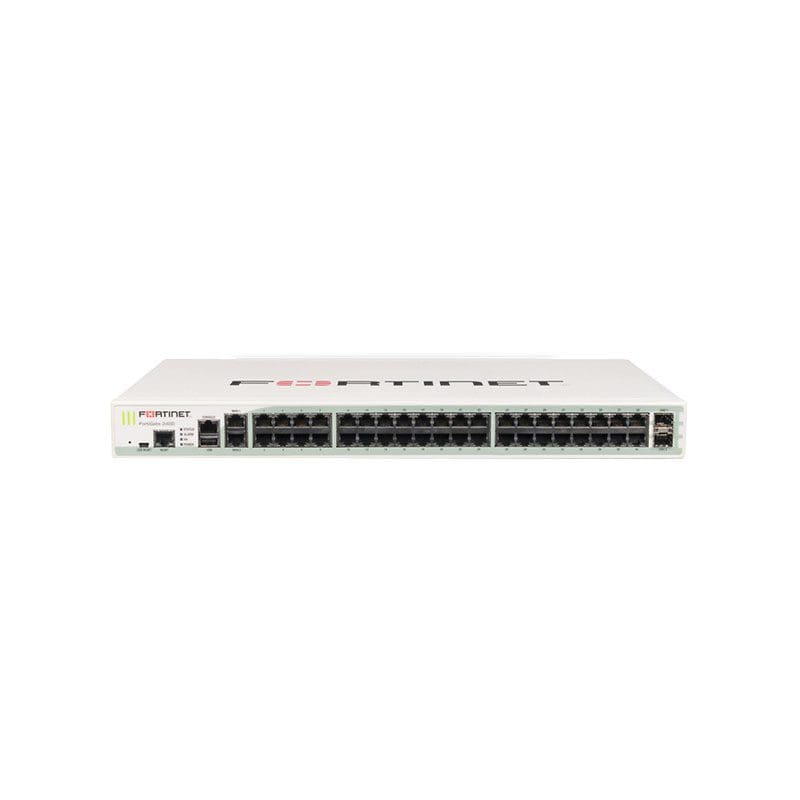

FG240DBDL-USG-980-36 Fortinet FortiGate Network Security/Firewall

FG240DBDL-USG-980-36 Specifications

Fortinet FortiGate 240D Unified Security Bundle Network Security Appliance

Manufacturer: Fortinet
Manufacturer Model: FG240D-BDL-USG-980-36
Product Line: FortiGate
Product Series: 240D
Product Type: Network Security / Firewall Appliance (Unified Security Bundle)
Product Name: FortiGate 240D Unified Security Bundle

KEY FEATURES:
Firewall Protection Supported: Application Control, Antivirus, IPS, Web Filtering, Anti-Malware, Advanced Threat Protection
VPN Support: IPsec VPN, SSL VPN
Encryption Standard: AES (128-bit / 256-bit), SHA-1 / SHA-256
Interfaces/Ports:

Multiple GE RJ45 Ports (WAN / LAN / DMZ)

Multiple GE SFP Slots

USB Port
Network Technology: Gigabit Ethernet
Hardware Acceleration: SPU (Security Processing Unit)
Central Management: Supported (FortiManager / FortiAnalyzer)
Manageable: Yes

PERFORMANCE:
Firewall Throughput: ~7 Gbps
IPsec VPN Throughput: ~3 Gbps
Concurrent Sessions: ~2,000,000
New Sessions/Second: ~75,000
SSL-VPN Throughput: ~500 Mbps
Concurrent SSL-VPN Users (Recommended): ~600
IPS Throughput: ~1.5 Gbps
NGFW Throughput: ~1 Gbps
Threat Protection Throughput: ~900 Mbps

SUBSCRIPTION / BUNDLE DETAILS:
Security Bundle Type: Unified Security (USG)
License Term: 36 Months
Services Included: FortiGuard Antivirus, IPS, Web Filtering, Application Control, Anti-Malware, Firmware Updates, FortiCare Support

ENVIRONMENTAL & RELIABILITY:
Designed for enterprise branch and campus network security deployment
Operating Temperature: 0 °C to 40 °C
Storage Temperature: −25 °C to 70 °C
Humidity (Operating): 10 %–90 % non-condensing
Reliability Rating: Enterprise-class, 24×7 operation

PHYSICAL:
Form Factor: 1U Rack-mountable Appliance
Typical Dimensions: ~44 mm × 442 mm × 350 mm (H × W × D)
Weight: ~9 kg (~19.8 lbs)
Power Required: 100–240 V AC, 50–60 Hz
Power Consumption (Average / Maximum): ~50 W / ~65 W
