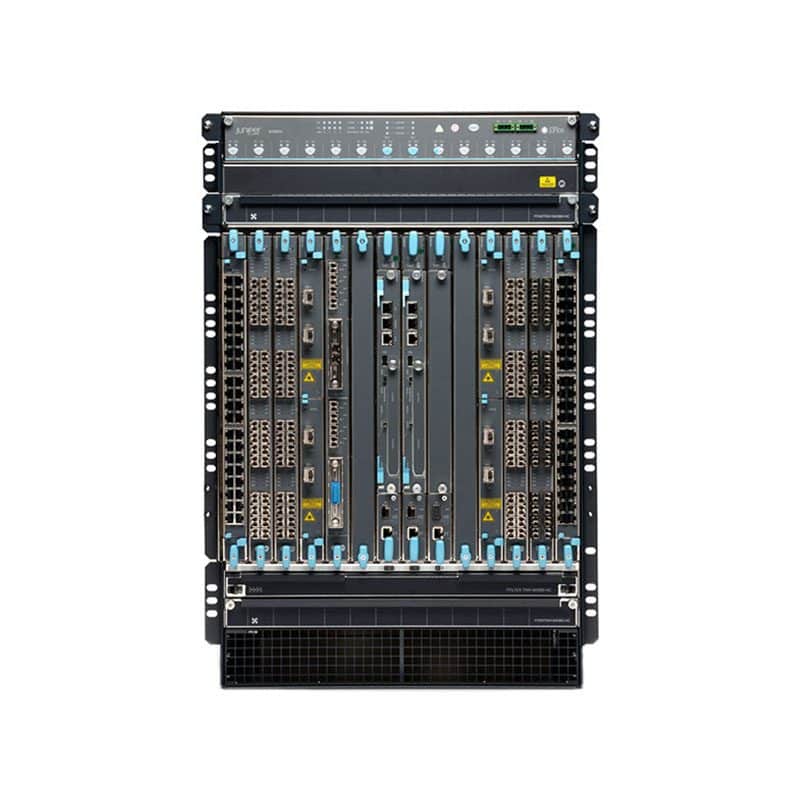

EX9214‑REDUND3‑DC Specifications
Manufacturer: Juniper Networks
Manufacturer Model: EX9214‑REDUND3‑DC
Product Line: EX9200 Series
Product Series: 14‑Slot Modular Chassis (Redundant DC Power)
Product Type: Modular Ethernet Switch Chassis
Product Name: Juniper EX9214 Redundant DC Configuration
KEY FEATURES:
14‑slot chassis with passive midplane
Dual routing engines (redundant control plane)
Three switch‑fabric modules installed in the base redundant configuration
Four 4100 W DC power supplies (‑40 VDC through ‑72 VDC input) for full N+N redundancy
Two hot‑swappable fan trays for full cooling redundancy
PERFORMANCE:
Supports up to ~6.2 Tbps to ~13.2 Tbps back‑plane capacity depending on slot and module population
High performance routing forwarding, supports large MAC and route tables, jumbo frames
Designed for enterprise core/aggregation and campus data‑centre environments
ENVIRONMENTAL & RELIABILITY:
Enterprise‑grade chassis built for continuous 24×7 operation
Redundant power and cooling subsystems ensure high availability
DC input version: must use compatible DC power feeds; cannot mix AC and DC power supplies in the same chassis
Operating temperature typical: 0 °C to ~40 °C
PHYSICAL:
Form Factor: Rack‑mount chassis ~14 RU height (for the 14‑slot EX9214 chassis)
Dimensions: Width ~44.5 cm, Height ~70.5 cm (27.8″), Depth ~78.9 cm (31.08″) for DC variant
Weight: Approx. 68 kg (150 lb) for chassis with midplane and fan trays; maximum populated unit weight ~158.8 kg (350 lb)
IMPORTANT NOTES:
Chassis only: line cards (interface modules), optics, and additional modules must be purchased separately.
Ensure your rack infrastructure (power feeds, cooling, depth, rack strength) supports this modular chassis and redundant DC configuration.
To maintain redundancy, all four DC power supplies must be installed; verify site power feed supports dual A/B feed as per Juniper specification.
Verify support, spare parts availability, and current lifecycle status in your region before deployment.
