EX9214‑RED3B‑AC Specifications

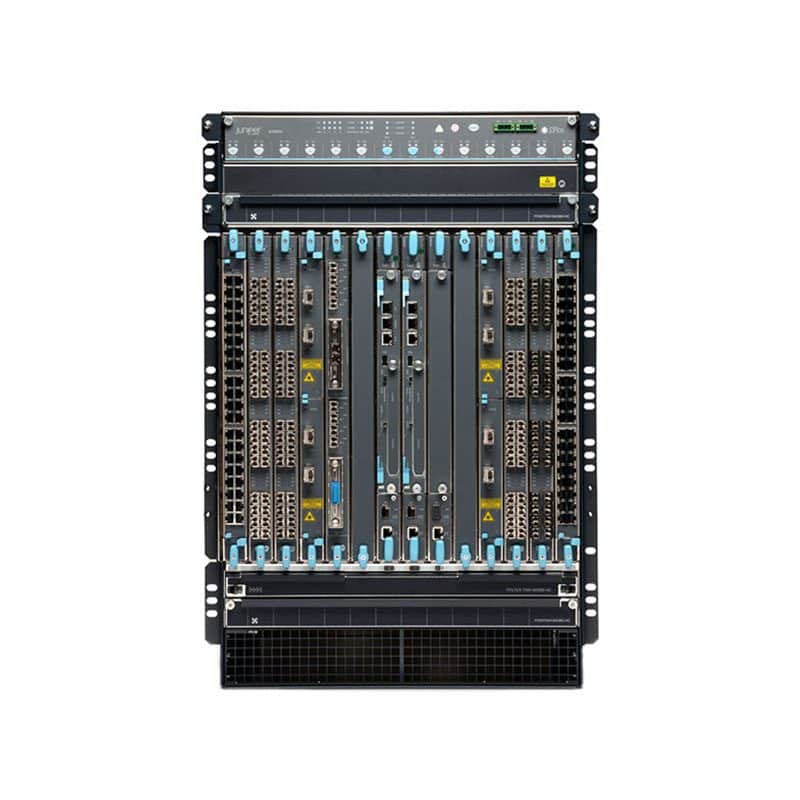

Juniper EX9214 14‑Slot Modular Core/Aggregation Switch Chassis (Redundant Configuration, AC Power)
Manufacturer: Juniper Networks
Manufacturer Model: EX9214‑RED3B‑AC
Product Line: EX Series Ethernet Switch
Product Series: EX9214
Product Type: Fixed‑Configuration Modular Chassis Core/Aggregation Switch
Product Name: Juniper EX9214‑RED3B‑AC Switch
KEY FEATURES:
Chassis: 14‑slot modular chassis with passive midplane
Redundant configuration: 2 × EX9200‑RE2 routing engine modules
Fabric modules: 3 × Switch Fabric‑2 modules
Power supplies: 4 × 4100 W AC power supplies
Cooling: 2 × fan trays (hot‑pluggable)
Blank panels included for unused slots
Designed for high‑availability core deployments
PERFORMANCE:
Backplane / Fabric Capacity: Up to ~12 Tbps
Slot Fabric Throughput: Up to ~1.5 Tbps per slot
High port density support for 1 GbE/10 GbE/40 GbE/100 GbE line cards
Advanced L2/L3/virtualization features (including EVPN/VXLAN, multicast scaling, full routing)
ENVIRONMENTAL & RELIABILITY:
Designed for enterprise campus or data‑center core/aggregation with continuous operation
Operating Temperature: 0 °C to ~40 °C
Storage Temperature: –40 °C to ~70 °C
Operating Humidity: ~5% to 90% non‑condensing
Reliability Rating: Carrier/enterprise‑class with redundant control and fabric planes, power redundancy, and hot‑swap components
PHYSICAL:
Form Factor: Rack‑mount chassis, 16 U height
Typical Dimensions: ~17.5 in (W) × ~27.8 in (H) × ~27.8 in (D) (~44.5 cm × ~70.5 cm × ~70.5 cm)
Weight: Chassis with full configuration up to ~350 lb (~158.8 kg)
Power Input: AC 200‑240 V, via four 4100 W AC PSUs
Airflow: Front‑to‑back airflow, designed for data‑center rack installation
