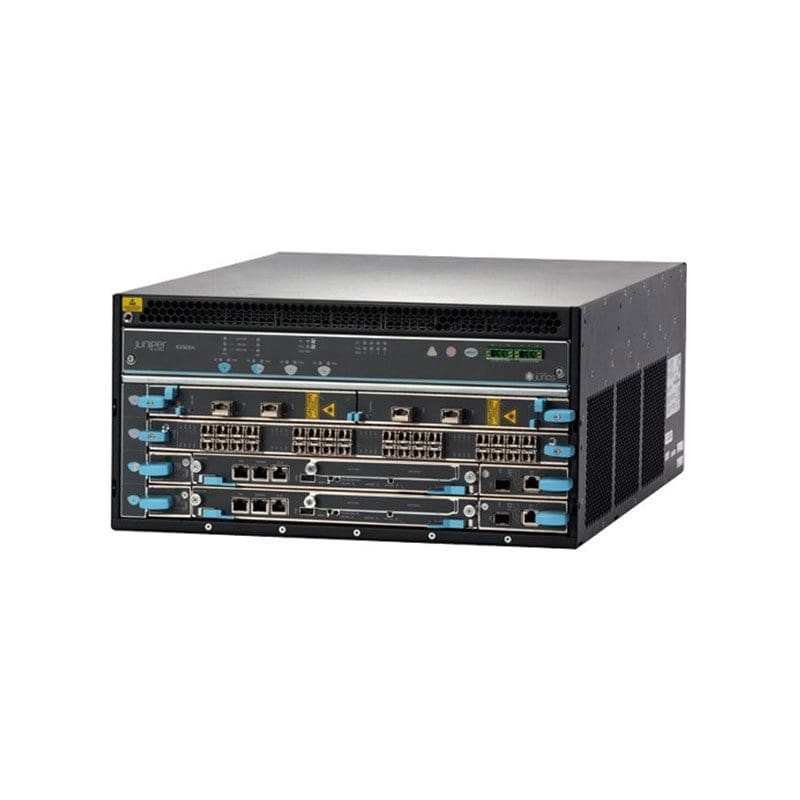

EX9204‑REDUND3A‑AC Specifications
Manufacturer: Juniper Networks
Manufacturer Model: EX9204‑REDUND3A‑AC
Product Line: Juniper EX9200 Series
Product Series: EX9204 4‑Slot Modular Chassis
Product Type: Modular Core/Distribution Ethernet Switch Chassis (Redundant AC Configuration)
Product Name: Juniper EX9204 Redundant AC Chassis
KEY FEATURES:
Chassis: 4‑slot modular chassis with passive midplane
Host Subsystem: 2 × Routing Engines (redundant)
Fabric: 2 × Switch Fabric‑2 modules
Cooling: 1 × Fan Tray
Power Supplies: 4 × 2520 W AC PSUs for redundancy
Redundancy: Fully redundant (control plane, fabric, power)
PERFORMANCE:
Backplane Capacity: Up to ~3 Tbps
Maximum Fabric Bandwidth per Slot: ~1.5 Tbps
Typical Power Draw (reduntant config): ~690 W
Supports up to three line cards (depending on configuration and slot usage)
ENVIRONMENTAL & RELIABILITY:
Operating Temperature: 0 °C to 40 °C
Relative Humidity: 5% to 90% non‑condensing
Hot‑swappable components: routing engines, fabric modules, PSUs, fan tray
Designed for “carrier‑class” availability with features like Graceful Routing Engine Switchover (GRES), nonstop routing/bridging
PHYSICAL:
Form Factor: 5 RU rack‑mountable chassis
Dimensions (W × H × D): 17.5 in × 8.7 in × 27.8 in (~44.5 cm × 22.1 cm × 70.5 cm)
Weight (fully loaded): up to ~128 lb (~58.1 kg)
If you like, I can pull the full official datasheet for this model (showing line‑card support, optics, software features) and check availability and pricing in Lahore, Pakistan.
