EX9204-CHAS3-S Juniper Networks Chassis 3 at discount

EX9204‑CHAS3‑S Specifications

Manufacturer: Juniper Networks

Manufacturer Model: EX9204‑CHAS3‑S
Product Line: EX9200 Series
Product Series: 4‑Slot Modular Chassis with Passive Midplane
Product Type: Ethernet Switch Chassis

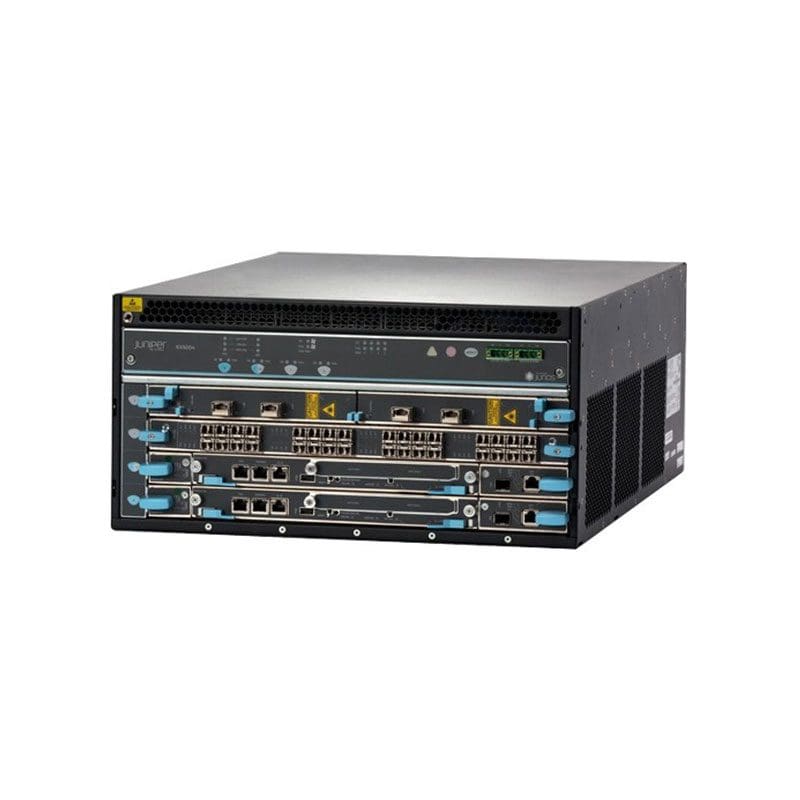

Product Name: Juniper EX9204 Chassis 3

KEY FEATURES:

4 chassis slots (expansion slots) designed for line cards in the EX9200 series.
Server Tech Supply
+4
NetworkScreen
+4
Juniper Networks
+4

Passive midplane architecture for improved signal integrity and performance scaling.
IP Trading Pty Ltd
+1

Supports redundant power supply configurations and hot‑swappable fan tray for high availability.
Juniper Networks
+1

PERFORMANCE:

Maximum throughput per slot: up to ~480 Gbps full‑duplex per slot when using the appropriate switch fabric modules.
Juniper Networks
+1

System backplane supports capacity up to ~13.2 Tbps for larger chassis in this series; the 4‑slot model follows same architecture.
NetworkScreen
+1

ENVIRONMENTAL & RELIABILITY:

Enterprise/data‑center grade chassis built for continuous 24×7 operation.
Juniper Networks
+1

Supports multiple power input types: –40 VDC to –72 VDC, 100‑120 V AC, 200‑240 V AC, with full redundancy when configured.
Juniper Networks
+1

PHYSICAL:

Form Factor: Rack‑mountable chassis (6 RU approximate) for the 4‑slot version.
ICP Networks
+1

Dimensions: Width ~444.5 mm, Depth ~704.9 mm for the model specification.
ICP Networks

Weight: Approx. 30.98 kg (≈68.3 lb) base chassis without modules.
NetworkScreen

IMPORTANT NOTES:

This part is a chassis only: line cards, routing engines, switch fabric modules, optics, and any required licenses are not included.

Ensure your rack infrastructure (power feed, cooling, airflow, depth, rack strength) supports this model before deployment.

Verify module compatibility and support status in your region (e.g., Pakistan, if applicable) as this is part of the EX9200 series.
