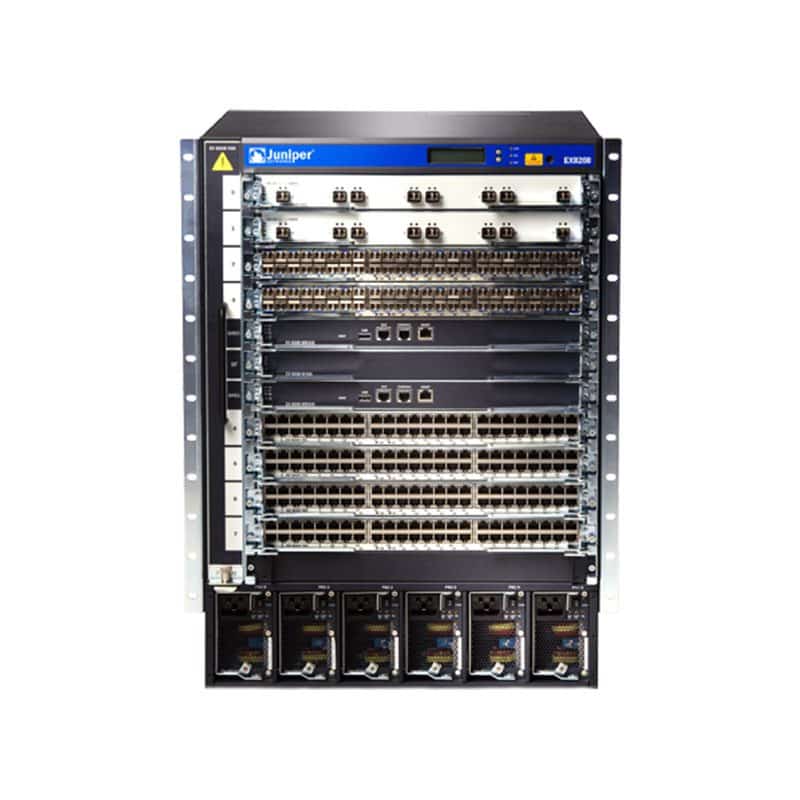

EX8208‑BASE‑AC3 Specifications
Manufacturer: Juniper Networks
Manufacturer Model: EX8208‑BASE‑AC3
Product Line: EX8200 Series
Product Series: EX8208 8‑Slot Chassis (3 kW AC power)
Product Type: Modular Ethernet Switch Chassis
Product Name: Juniper EX8208 Base 3 kW AC System
KEY FEATURES:
8 dedicated line‑card slots with passive midplane design
Included components: 1 hot‑swappable fan tray, 1 Routing Engine with switch fabric, 1 additional switch fabric module
Power supply: 2 × 3000 W AC PSUs (with power cords) for base configuration
Designed for high‑density data‑center, campus aggregation, and core switching environments
PERFORMANCE:
Backplane capacity: up to ~6.2 Tbps when fully populated
Fabric per slot: 320 Gbps full‑duplex
Maximum forwarding capacity: ~960 Mpps in fully loaded configuration
Supports high port densities (e.g., up to 384 Gigabit or 64 10‑Gigabit ports in certain configurations)
ENVIRONMENTAL & RELIABILITY:
Built for 24×7 enterprise operation with modular, hot‑swappable components
Input voltage: Standard AC (supports 2000 or 3000 W PSUs)
Cooling: Variable‑speed fans, front‑panel LCD for monitoring
Operating temperature: 0 °C to 40 °C typical
Supports advanced availability features: Graceful Route Engine Switchover (GRES), Non‑Stop Routing (NSR), and more
PHYSICAL:
Height: 14 RU rack‑units
Depth: approximately 21 in (53 cm)
Width: approximately 17.25 in (43.8 cm)
Base configuration weight: ~176 lb (80 kg)
IMPORTANT NOTES:
This model is a chassis‑only base system: line cards, optics/transceivers, additional modules, and licensing are not included.
Ensure your rack infrastructure supports the required power feed, cooling, depth, weight, and airflow for this high‑performance chassis.
Check local availability, spare parts and support status in your region before procurement.
