EX4400‑24T‑AFI‑TAA Specifications

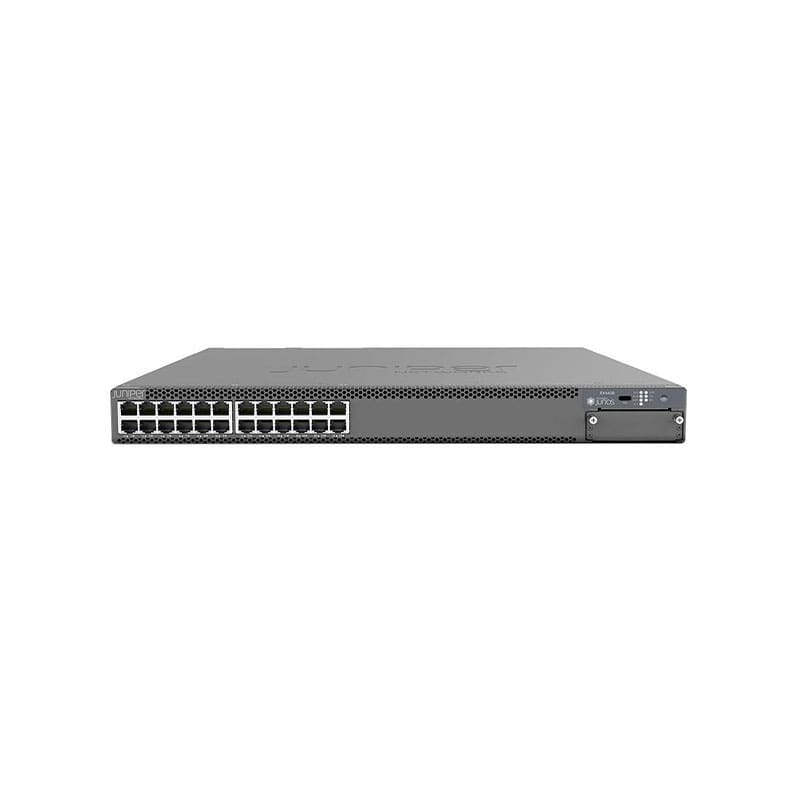

Juniper Networks EX4400 24‑Port 10/100/1000 Mbps Access Switch, Back‑to‑Front Airflow, TAA‑Compliant
Manufacturer: Juniper Networks
Manufacturer Model: EX4400‑24T‑AFI‑TAA
Product Line: EX4400 Series Switches
Product Series: 24T (24 × 10/100/1000 BASE‑T)
Product Type: Fixed‑port Access Layer Ethernet Switch
Product Name: Juniper EX4400‑24T‑AFI‑TAA
KEY FEATURES:
Port Count: 24 × 10/100/1000 BASE‑T RJ‑45 access ports
Uplink/Stacking: Supports optional extension modules (4‑port 1/10/25 GbE) and 2 × 100 GbE stacking links
Airflow Orientation: AFI (back‑to‑front airflow)
Procurement Compliance: TAA (Trade Agreements Act)‑compliant model
Virtual Chassis: Up to 10 units can be deployed as a single logical device via Virtual Chassis technology
PERFORMANCE:
Switching Capacity (Full): ~324 Gbps unidirectional / ~648 Gbps bidirectional
Forwarding Rate: ~482 million packets per second (Mpps)
MAC Address Table: ~112,000 entries
Jumbo Frame Support: Up to 9,216 bytes
VLAN Support: Up to 4,093 VLANs
Backplane & VC Interconnect: 400 Gbps virtual chassis interconnect
ENVIRONMENTAL & RELIABILITY:
Power Supply Rating: 550 W AC (single power supply)
Redundancy: Supports dual hot‑swappable internal power supplies and variable‑speed fans
Operating Temperature: 0 °C to 45 °C typical
Altitude: Up to ~1,828 m (6,000 ft) at 40 °C
Ingress/Reliability: Enterprise‑class access, hot‑swappable components
PHYSICAL:
Form Factor: 1U rack‑mount
Dimensions (W × H × D): ~44.17 cm × 4.37 cm × 43.0 cm (~17.39″ × 1.72″ × 16.93″)
Weight: ~5.9 kg (~13.0 lb) for chassis only
