D6D3T Dell 9300-4i4e Single SAS Host Bus Adapter at discount

D6D3T Specifications

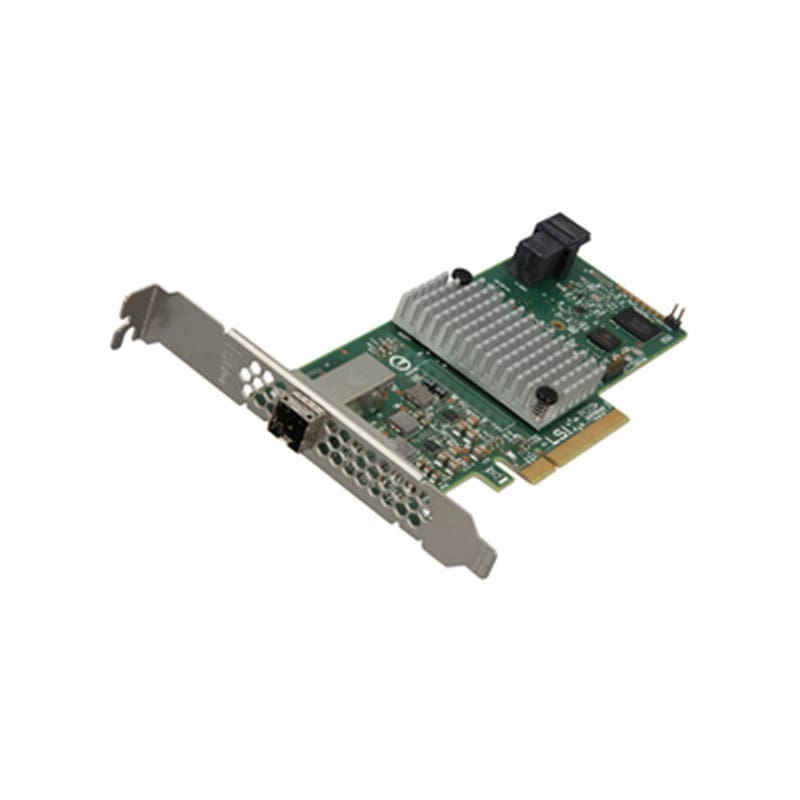

Dell 9300‑4i4e 12 Gb/s 4‑Port SAS Host Bus Adapter (HBA)

Manufacturer: Dell
Manufacturer Model: D6D3T
Product Line: Dell SAS Storage Controllers
Product Series: 9300‑4i4e 12 Gb/s SAS HBA
Product Type: Host Bus Adapter (Controller)
Product Name: Dell 12 Gb/s 4‑Port SAS Host Bus Adapter (D6D3T)

KEY FEATURES:
Interface Type: PCI Express 3.0 ×8
Data Transfer Rate: Up to 12 Gb/s SAS
Ports: 4 SAS ports (internal and/or external depending on configuration)
Protocol: SAS (Serial Attached SCSI)
Controller Chip: LSI SAS3008 class controller (9300 series)
Form Factor: Low‑profile PCIe expansion card
RAID Support: None (non‑RAID / pass‑through HBA)

PERFORMANCE:
Maximum Data Transfer Rate: ~1.2 GB/s (12 Gb/s)
Host Interface: PCIe 3.0 ×8
Devices Supported: Up to ~1024 SAS/SATA devices (typical for SAS HBA)

ENVIRONMENTAL & RELIABILITY:
Designed for enterprise server storage connectivity
Operating Temperature Range: 0 °C to 55 °C
Operating Humidity Range: 5 % to 90 % non‑condensing
Reliability Rating: Enterprise‑class adapter for 24×7 operation

PHYSICAL:
Form Factor: Low‑profile PCIe expansion card
Typical Dimensions: ~2.6″ × 6.0″ (low‑profile card size)
Weight: Typical small expansion card weig
