D235ES-00 Dell 235 Watts 100-240V Power Supply at discount

D235ES-00 Specifications

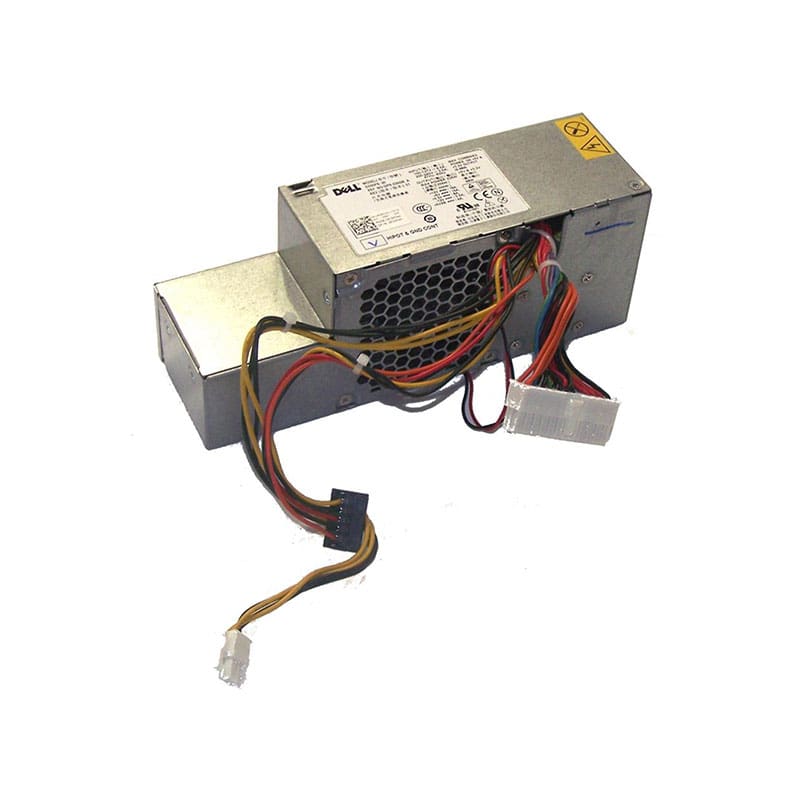

Dell 235 W Power Supply

Manufacturer: Dell
Manufacturer Model: D235ES-00
Product Line: Dell Power Supplies
Product Series: Not explicitly specified
Product Type: Internal Power Supply Unit (PSU)
Product Name: Dell 235W Power Supply

KEY FEATURES:
Power Capacity: 235 Watts
Input Voltage: 100‑240 V AC, 4.5 A, 50‑60 Hz
Form Factor: Internal Small Form Factor (SFF) compatible
Compatibility: Designed for Dell OptiPlex 380/580/760/780/960/980 SFF systems
Features Supported: Standard PSU protections (over‑voltage, over‑current, short‑circuit)

PERFORMANCE:
Maximum Output Power: 235 W
Efficiency Rating: ~80 PLUS Gold (approx)
Cooling: Internal fan
Connector Configuration: 24‑Pin Mini‑ATX power, 4‑Pin ATX, SATA power & slim‑line SATA

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: Not explicitly specified
Storage Temperature Range: Not explicitly specified
Operating Humidity: Not explicitly specified
Shock Resistance: Not explicitly specified
Vibration Resistance: Not explicitly specified

PHYSICAL:
Dimensions (W x D x H): Approx. 82 mm × 62 mm × 209 mm
Weight: ~2.2 lbs (≈1 kg)
Color: Standard metal PSU enclosure
