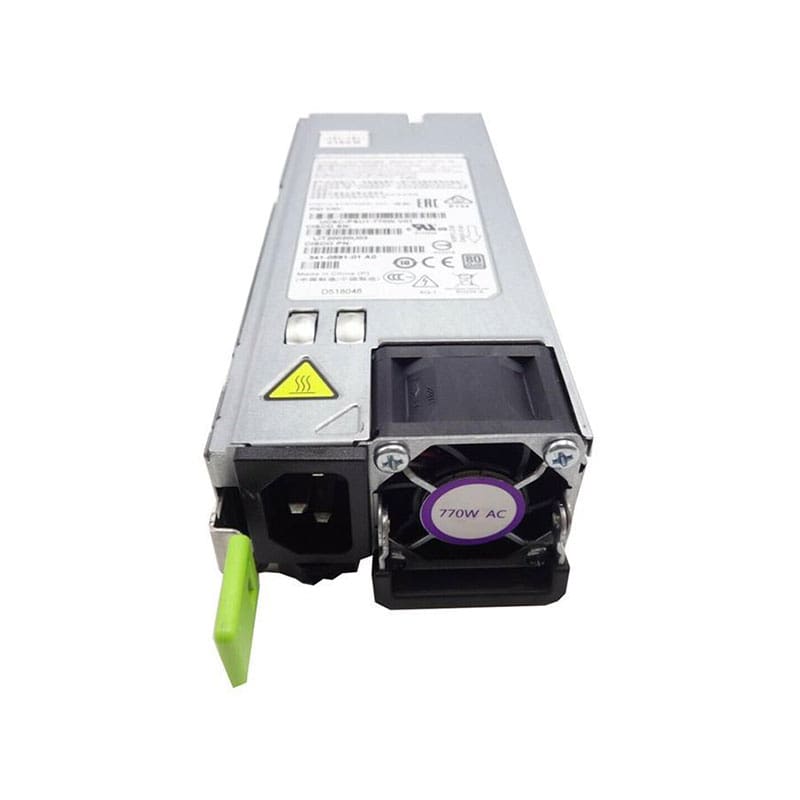

CMP-PSU1-770W-1 Cisco 770Watt AC Power Supply at discount

CMP-PSU1-770W-1 Specifications

Cisco 770 W AC Hot‑Swappable Power Supply Module

Manufacturer: Cisco
Manufacturer Model: CMP-PSU1-770W-1
Product Line: Cisco Server/Chassis Power Supplies
Product Series: AC Input 770W Module
Product Type: Hot‑swappable AC Power Supply
Product Name: Cisco 770 W AC Power Supply Module

KEY FEATURES:

Power Capacity: 770 Watts (maximum output)

Input Type: AC, auto‑sensing (100–240 V)

Hot‑Swap Support: Yes — field‑replaceable for minimal downtime

Redundancy Support: Suitable for redundant configuration in compatible server chassis

PERFORMANCE:

Maximum Output Power: 770 W

Typical AC Input Current: ~9.5 A at 100 V

Efficiency: High‑efficiency design (80 PLUS Platinum/ClimateSavers class)

ENVIRONMENTAL & RELIABILITY:

Operating Temperature: 0 °C to 40 °C

Storage Temperature: –40 °C to +70 °C

Relative Humidity: Non‑condensing conditions typical for data‑centre modules

Reliability Rating: Enterprise‑grade continuous operation

PHYSICAL:

Form Factor: Internal hot‑swap power module for server chassis

Weight: ~1.36 kg (~3.00 lbs)

Mounting: Designed for plug‑in insertion into compatible server power slot
