C9606R-1A Cisco Catalyst 9606R Switch aty discount

C9606R‑1A Specifications

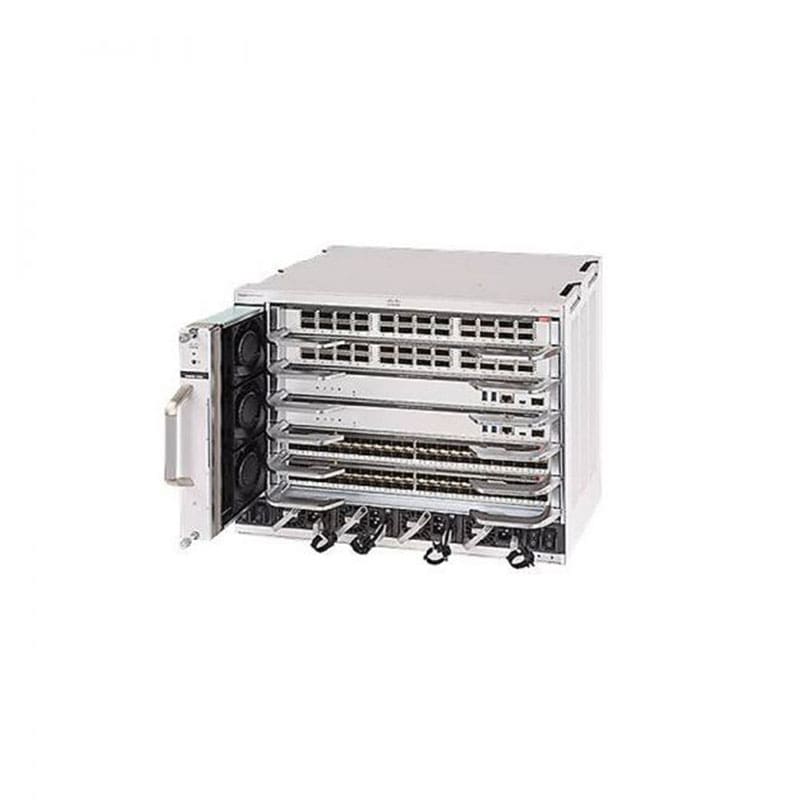

Cisco Catalyst C9606R‑1A

Manufacturer: Cisco
Manufacturer Model: C9606R‑1A
Product Line: Cisco Catalyst 9600 Series
Product Series: C9606R (6‑slot modular chassis)
Product Type: Modular Core/Distribution Switch Chassis
Product Name: Cisco Catalyst C9606R‑1A Switch

KEY FEATURES:

Chassis supports 6 slots (4 line‑card slots + 2 supervisor engine slots) for modular expansion

Supervisor engine redundancy with 1+1 support (two supervisor slots)

High bandwidth scalability: up to ~25.6 Tbps wired switching capacity (12.8 Tbps full duplex) for the chassis

Designed for enterprise campus/distribution core networking, with advanced features like modular line cards, high port densities, future‑proof for 25/50/100/400 GbE ports

PERFORMANCE & CAPACITY:

Switching capacity: Up to ~25.6 Tbps (12.8 Tbps full‑duplex) for the fully equipped chassis

Each line‑card slot (with the higher end supervisor) can support up to ~6.4 Tbps (3.2 Tbps full‑duplex)

Modular architecture supports a wide variety of line cards (1/10/25/50/100/400 Gb) and supports large tables (MAC, route, ACL) for core/distribution deployments

ENVIRONMENTAL & RELIABILITY:

Operating Temperature: −5 °C to 45 °C (23 °F to 113 °F) up to ~6000 ft altitude; −5 °C to 40 °C up to ~10,000 ft

Storage Temperature: −40 °C to 75 °C (−40 °F to 167 °F)

Operating Humidity: 10%–95% non‑condensing

MTBF (mean time between failures): ~4,113,900 hours for the chassis

Supports redundant power supplies (AC or DC) and redundant fans

PHYSICAL:

Form Factor: Rack‑mountable, 8U height

Dimensions (H × W × D): ~35.43 cm × 44.2 cm × 40.9 cm (13.95″ × 17.4″ × 16.1″)

Chassis weight: ~31.31 kg (69.03 lbs) with two power supplies and fan tray installed

Input Voltage: AC 90‑264 V, 47‑63 Hz; DC −40 V to −72 V supported
