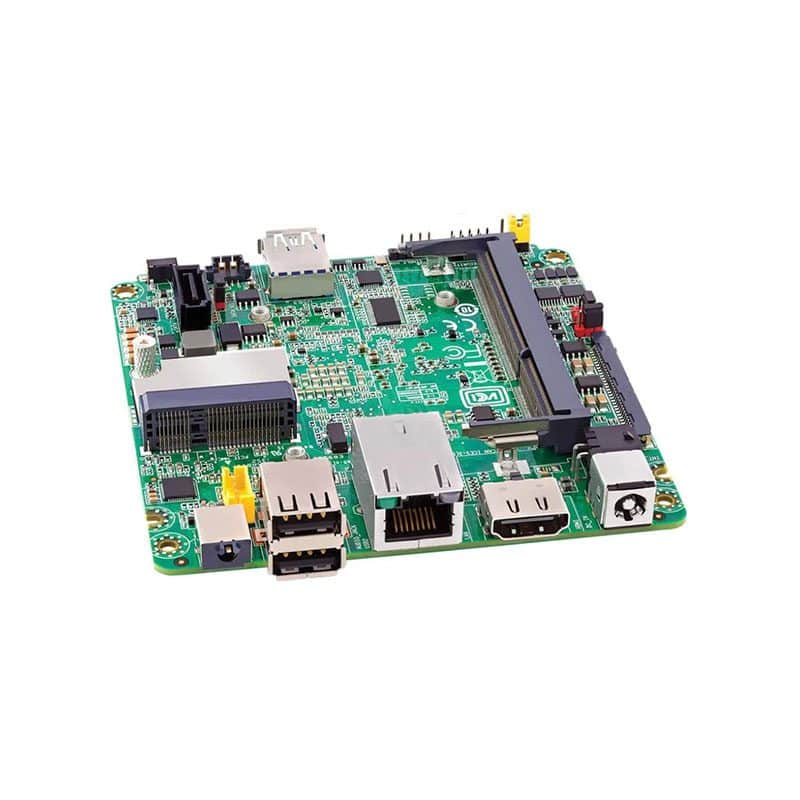

BLKDE3815TYBE Intel Next Unit of Computing Board

BLKDE3815TYBE Specifications

Intel NUC Board DE3815TYBE

Manufacturer: Intel
Manufacturer Model: BLKDE3815TYBE / DE3815TYBE
Product Line: Intel NUC Boards
Product Series: Thin Canyon
Product Type: Ultra-compact Single Board Computer / Motherboard
Product Name: Intel NUC Board DE3815TYBE

KEY FEATURES:
Processor: Intel Atom E3815, 1.46 GHz, Single-core, 512 KB cache
TDP: 5 W
Memory: 1 × DDR3L SO-DIMM slot, up to 8 GB
Graphics: Intel HD Graphics (~400 MHz)
Video Outputs: 1 × HDMI 1.4a, 1 × eDP 1.3, VGA header
Storage: 4 GB eMMC onboard, 1 × SATA port
Connectivity: USB 3.0 (1 front), USB 2.0 (2 back + 3 internal headers), Gigabit Ethernet
Expansion: 1 × half-size Mini PCI-Express slot
Additional Features: Fan-less design, TPM 1.2, Watchdog timer, Custom Solutions Header, 2 × Serial port headers
Power Input: 12–19 V DC (external) or 12–24 V DC (internal)
Form Factor: UCFF (101.6 × 101.6 mm)

PERFORMANCE:
Max Memory: 8 GB DDR3L
eMMC Storage Speed: Not explicitly specified
CPU Efficiency: Low-power single-core Atom suitable for embedded / thin-client tasks

ENVIRONMENTAL & RELIABILITY:
Operating Temperature: 0 °C to +50 °C
Watchdog Timer: Yes
Lifetime / Warranty: 3-year product life cycle per Intel NUC spec

PHYSICAL:
Dimensions (W x D x H): 101.6 mm × 101.6 mm × 28.8 mm
Weight: Not explicitly specified
Color: Standard green PCB
