B010840002 EMACS 500 Watt AC 1U Power Supply at disocunt

B010840002 Specifications

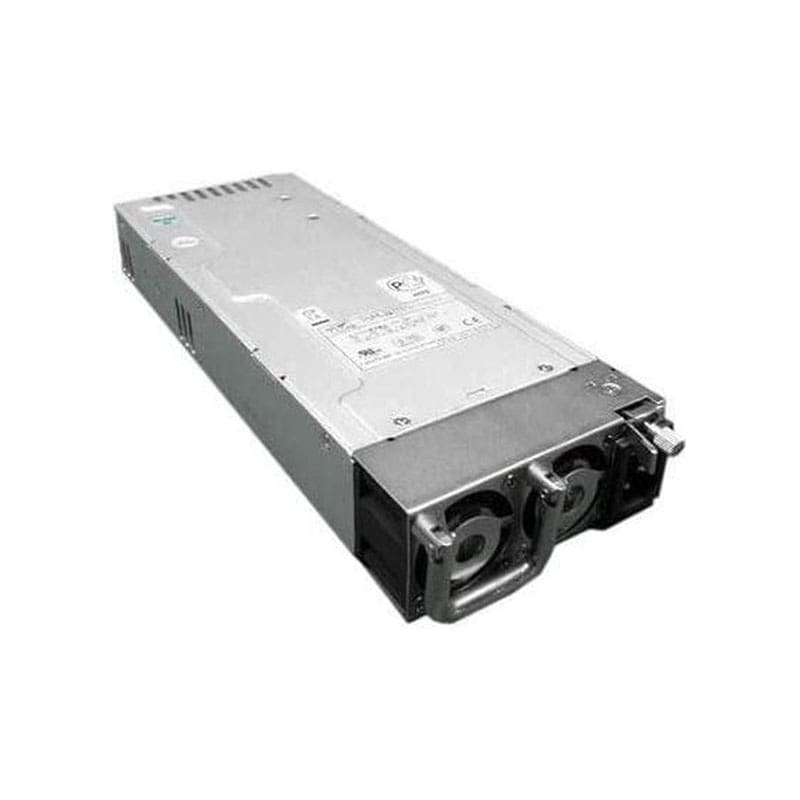

EMACS / Zippy 500 W Hot‑Swappable Redundant Power Supply Module

Manufacturer: EMACS
Manufacturer Model: B010840002
Product Line: EMACS / Zippy Redundant Power Supplies
Product Series: R2W‑6500P‑R 500W Module
Product Type: Internal Server Redundant Power Supply Module
Product Name: EMACS 500W Redundant PSU Module

KEY FEATURES:
Maximum Output Power: 500 W
AC Input Voltage: 115–240 V AC, 47–63 Hz
Input Current: ~8 A at 115 V / ~4 A at 240 V
Hot‑Swap Support: Yes (redundant module design)
Form Factor: Plug‑in module for server chassis
Active PFC: Yes

PERFORMANCE:
+12 V Rail Maximum Current: 32 A
+5 V Rail Maximum Current: 30 A
+3.3 V Rail Current Up to 24 A
−5 V Rail Current Up to 0.7 A
−12 V Rail Current Up to 0.7 A
+5 VSB Rail Up to 2 A
Designed for redundant 1+1 or multi‑module server use

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: 0 °C to 40 °C
Storage Temperature Range: −20 °C to ~60 °C
Humidity: Operating 20‑95%, Non‑Operating 10‑95%
Reliability Rating: Enterprise/server class, 24×7 operation

PHYSICAL:
Form Factor: Redundant power supply module (2U/3U chassis style)
Typical Dimensions: ~300 mm × 101 mm × 84 mm
Cooling: Dual 38 × 38 × 28 mm DC fans, front‑to‑back airflow
