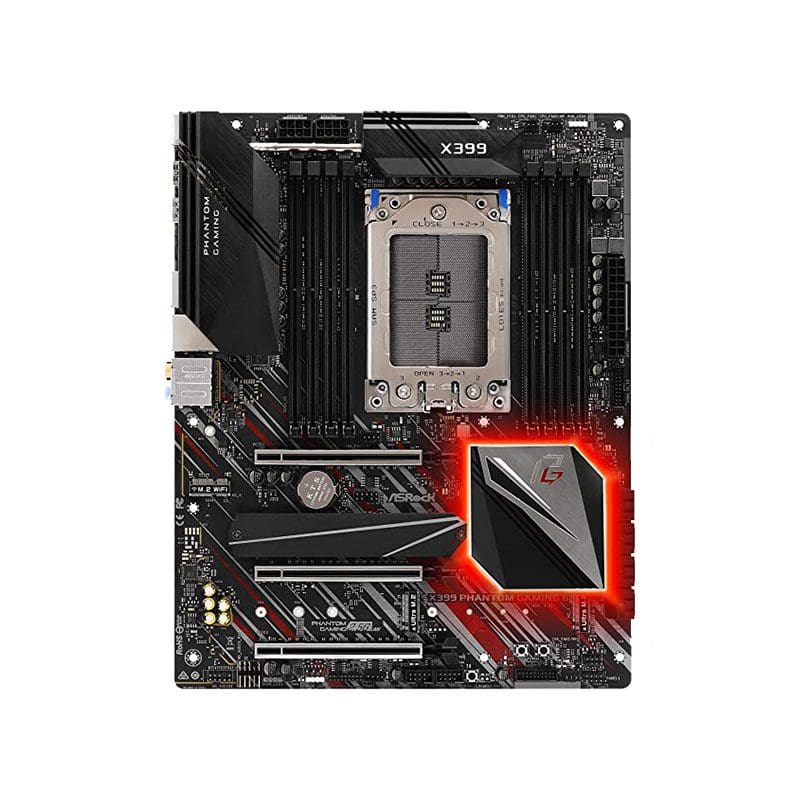

ASRock X399 Phantom Gaming 6 sTR4 AMD X399 SATA 6Gb/s

ASRock X399 Specifications

ASRock X399 ATX Motherboard

Manufacturer: ASRock
Manufacturer Model: X399
Product Line: ASRock
Product Series: X399
Product Type: ATX Motherboard
Product Name: ASRock X399

KEY FEATURES:
CPU Socket: Socket TR4, supports AMD Ryzen Threadripper CPUs
Chipset: AMD X399
Memory: 8 × DDR4 DIMM, up to 128 GB, quad-channel, non-ECC
Supported Memory Speeds: 3600 / 3466 / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Graphics Output: HDMI
Multi-GPU Support: AMD CrossFireX, NVIDIA SLI
Expansion Slots: 4 × PCIe 3.0 ×16
Storage: 8 × SATA III (6 Gb/s), 2 × Ultra M.2 slots, RAID 0/1/10
LAN: Intel I211AT 1 Gb Ethernet
Audio: Realtek ALC1220 8-channel HD Audio
USB Ports: Rear: USB 3.1 Gen 2, USB 3.1 Gen 1, USB 2.0; Internal: multiple headers for USB 3.1 and USB 2.0
Cooling & Power: Robust VRM heatsinks, multiple fan headers, water pump header
Protection / Stability: ASRock Full Spike Protection, overvoltage protection

PERFORMANCE:
Maximum Memory Speed: Up to DDR4-3600 (OC)
CPU Support: AMD Ryzen Threadripper 1900 / 1920 / 1950 / 1920X / 1950X / 2970WX / 2990WX

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: Not explicitly specified
Storage Temperature Range: Not explicitly specified
Operating Humidity: Not explicitly specified
Shock Resistance: Not explicitly specified
Vibration Resistance: Not explicitly specified
Reliability Features: Designed for high-end workstation and enthusiast builds

PHYSICAL:
Form Factor: ATX (30.5 × 24.4 cm)
BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Weight: Not explicitly specified
Color: Black
