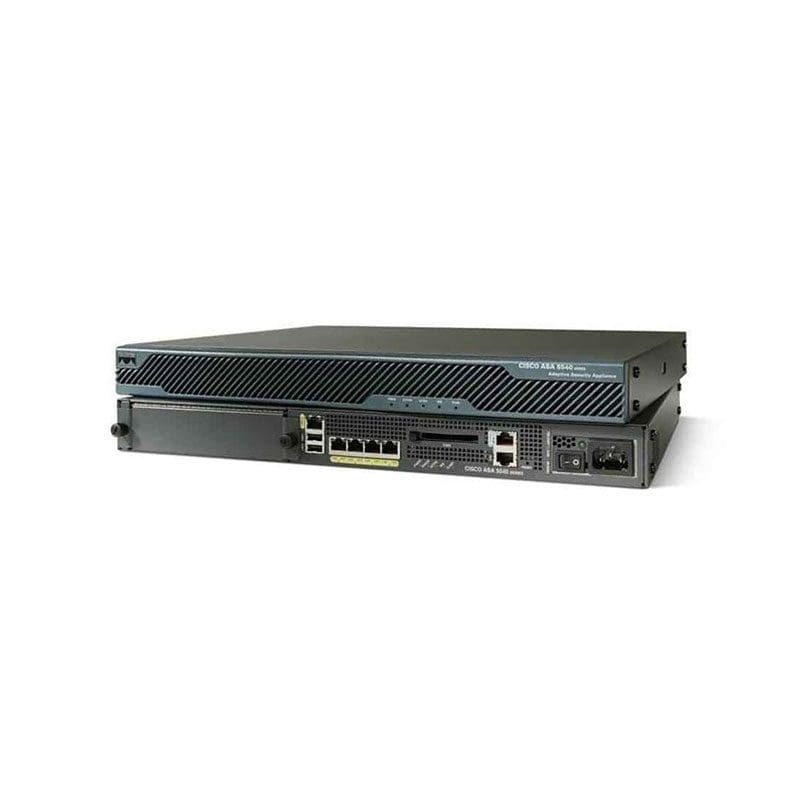

ASA5540-BUN-K9 Cisco ASA 5540 Firewall

ASA5540-BUN-K9 Specifications

Cisco ASA 5540 Security Appliance – Bundle

Manufacturer: Cisco
Manufacturer Model: ASA5540-BUN-K9
Product Line: ASA 5500 Series
Product Series: 5540
Product Type: Network Security / Firewall Appliance (Bundle)
Product Name: Cisco ASA 5540 Security Appliance – Bundle

KEY FEATURES:
Firewall Throughput: 4 Gbps
IPsec VPN Throughput: 1.5 Gbps
Maximum Concurrent Sessions: 500,000
New Sessions per Second: 32,000
Site-to-Site VPN Tunnels: 250
Client-to-Gateway VPN Tunnels: 500
SSL VPN Throughput: 300 Mbps
High Availability Support: Active/Standby, Failover
Intrusion Prevention: Supported via Cisco IPS module
Application Control: Limited, requires additional licensing
Network Interfaces: 8 × GE RJ45, 4 × Gigabit SFP (optional)
USB Port: 1
Console Port: 1
Wireless Interface: Not supported
Bundle Includes: Security licenses, VPN licenses, support package

PERFORMANCE:
Maximum Firewall Throughput: 4 Gbps
Maximum IPS Throughput: 1 Gbps
IPsec VPN Throughput: 1.5 Gbps
SSL VPN Throughput: 300 Mbps

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: 0–40 °C (32–104 °F)
Storage Temperature Range: –20–70 °C (–4–158 °F)
Operating Humidity: 5–90% non‑condensing
Shock Resistance: Not explicitly specified
Vibration Resistance: Not explicitly specified
Noise Level: ~50 dBA

PHYSICAL:
Dimensions (W × D × H): 44 × 37 × 4.4 cm (17.3 × 14.6 × 1.73 inches)
Weight: ~10 kg (~22 lb)
Color: Not explicitly specified
Form Factor: 1U Rackmount
Power Supply: Dual Internal AC (100–240 V AC, 50–60 Hz)
Power Consumption (Average / Maximum): ~150 / 200 W
Heat Dissipation: ~682 BTU/h
