ASA5506H-SP-BUN-K9 Cisco Fire Security Security

ASA5506H-SP-BUN-K9 Specifications

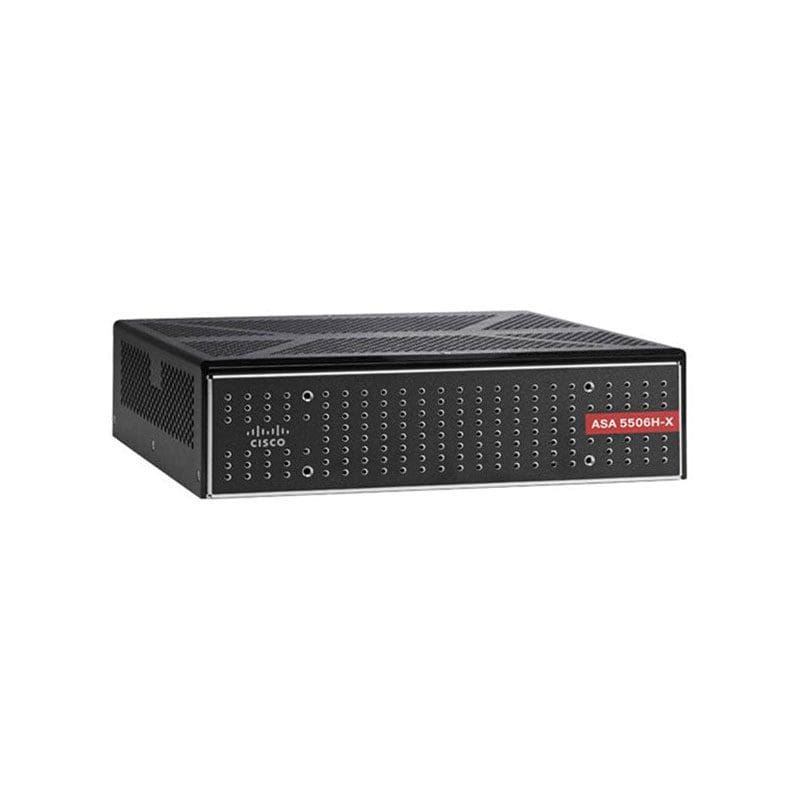

Cisco ASA 5506H Security Plus Bundle

Manufacturer: Cisco
Manufacturer Model: ASA5506H-SP-BUN-K9
Product Line: ASA 5500-X Series
Product Series: 5506H
Product Type: Network Security / Firewall Appliance (Bundle)
Product Name: Cisco ASA 5506H Security Plus Bundle

KEY FEATURES:
Firewall Throughput: 300 Mbps
IPsec VPN Throughput: 100 Mbps
Maximum Concurrent Sessions: 50,000
New Sessions per Second: 2,500
Site-to-Site VPN Tunnels: 50 (Security Plus license)
Client-to-Gateway VPN Tunnels: 250
SSL VPN Throughput: 50 Mbps
High Availability Support: Active/Standby
Intrusion Prevention: Supported via additional licensing
Application Control: Limited
Network Interfaces: 8 × GE RJ45 (1 management, 7 data)
USB Port: 1
Console Port: 1
Wireless Interface: Not supported
Bundle Includes: Security Plus License, VPN licenses, support package

PERFORMANCE:
Maximum Firewall Throughput: 300 Mbps
Maximum IPS Throughput: Not explicitly specified
IPsec VPN Throughput: 100 Mbps
SSL VPN Throughput: 50 Mbps

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: 0–40 °C (32–104 °F)
Storage Temperature Range: –20–70 °C (–4–158 °F)
Operating Humidity: 5–90% non‑condensing
Shock Resistance: Not explicitly specified
Vibration Resistance: Not explicitly specified
Noise Level: ~0 dBA (fanless design, suitable for desktop/office deployment)

PHYSICAL:
Dimensions (W × D × H): 150 × 140 × 27 mm (5.9 × 5.5 × 1.1 inches)
Weight: ~0.7 kg (~1.54 lb)
Color: Not explicitly specified
Form Factor: Desktop / Small Form Factor
Power Supply: Internal AC (100–240 V AC, 50–60 Hz)
Power Consumption (Average / Maximum): ~15 / 20 W
Heat Dissipation: ~68 BTU/h
