ALTV615DC616UCB Specifications

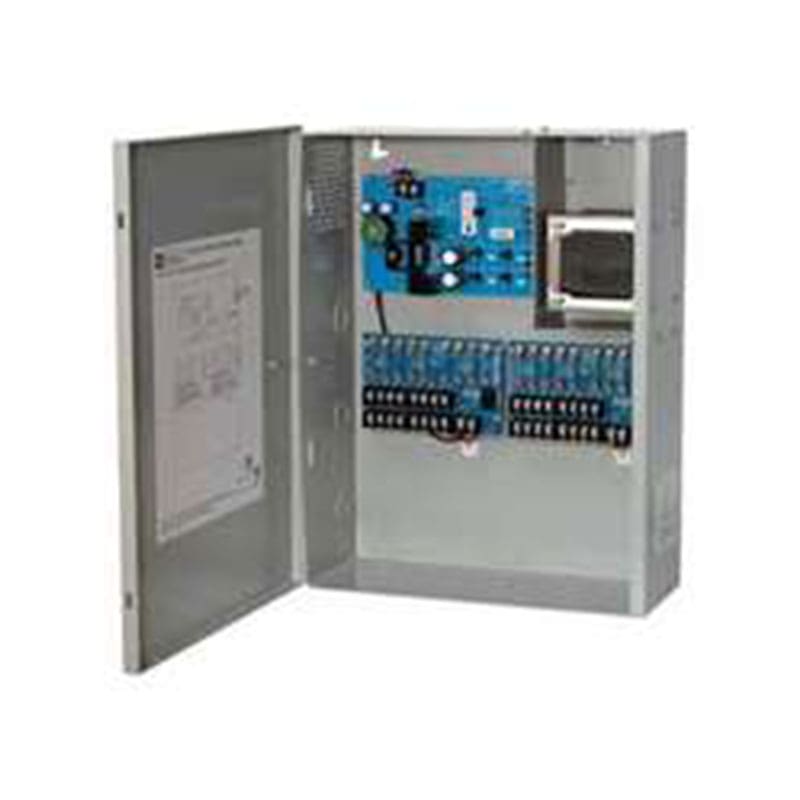

Altronix 6‑15 VDC, 16‑Output CCTV Power Supply (PTC Protected)
Manufacturer: Altronix
Manufacturer Model: ALTV615DC616UCB
Product Line: ALTV615DC16 Series
Product Series: —
Product Type: CCTV Power Supply / Distribution
Product Name: Altronix 6‑15 VDC, 16‑Output CCTV Power Supply (PTC Protected)
KEY FEATURES:
Input Voltage: 115 VAC, 50/60 Hz, 0.9 A
Output Voltage: 6 VDC to 15 VDC (field‑adjustable)
Total Supply Current: 6 A continuous
Number of Outputs: Sixteen (16) Class 2 Rated PTC protected auto‑resettable outputs
Maximum Output Rating Per Output: Up to 2.5 A each
Filtered & electronically regulated outputs; short circuit & thermal overload protection
LED indicators: AC input and DC output status
Enclosure: Wall‑mount indoor use
PERFORMANCE:
Output Capacity: 6‐15 VDC @ 6 A total
Individual Output Limit: Outputs rated at 2.5 A each
BTU/Hr (approx.): 18‑46 BTU/Hr
System AC input VA requirement: Approx. 103.5 VA
ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: 0 °C to 49 °C (32 °F to 120 °F)
Storage Temperature Range: –20 °C to 70 °C (–4 °F to 158 °F)
Relative Humidity: 85% ± 5%
Warranty: Lifetime limited warranty
PHYSICAL:
Dimensions (W × H × D): 13″ × 13.5″ × 3.25″ (330 mm × 343 mm × 83 mm)
Weight: Approx. 14.3 lb (6.49 kg) product; shipping weight approx. 14.8 lb (6.71 kg)
Enclosure Knockouts: ½″ and ¾″ combination knockouts
COMPATIBILITY & COMPLIANCE:
UL Listed for Commercial CCTV Equipment (UL 2044)
cUL Listed for CSA Standard C22.2 No.1‑98 (Audio, Video & Similar Equipment)
Designed for powering CCTV cameras, heaters and video accessories requiring multiple protected low‑voltage outputs.
