ALTV244175CB Altronix 115VAC CCTV PowerSupply at discount

ALTV244175CB Specifications

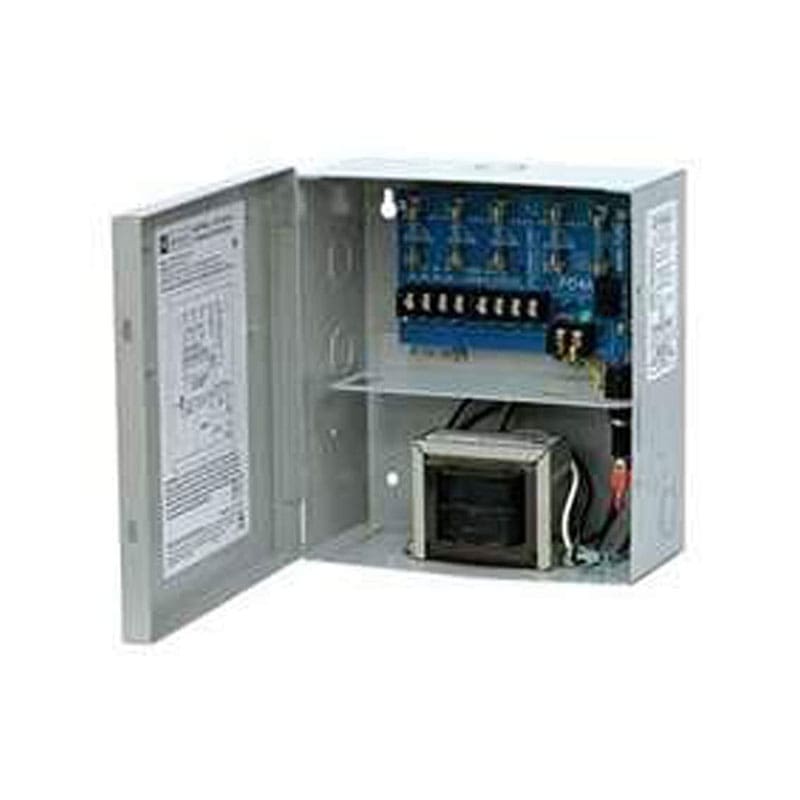

Altronix 24VAC 175VA PTC Protected Power Supply

Manufacturer: Altronix
Manufacturer Model: ALTV244175CB
Product Line: ALTV Series
Product Series: ALTV244
Product Type: Wall-Mount AC Power Supply
Product Name: Altronix 24VAC 175VA PTC Protected Power Supply

KEY FEATURES:

Output Voltage: 24 VAC or 28 VAC
Total Output Capacity: 175 VA (~7.25 A at 24 VAC)
Number of Outputs: 4 PTC-protected outputs (~2.5 A per output)
Input Voltage: 115 VAC, 50/60 Hz
Enclosure Type: Wall-mount (BC100M style)
Features Supported: PTC resettable protection, wall-mount installation

PERFORMANCE:

Maximum Output Current: 7.25 A (total)
Output Type: AC
Output Protection: PTC (resettable)
Efficiency: Not explicitly specified

ENVIRONMENTAL & RELIABILITY:

Operating Temperature Range: 0°C to 49°C (32°F to 120°F)
Storage Temperature Range: Not explicitly specified
Operating Humidity: Not explicitly specified
Shock Resistance: Not explicitly specified
Vibration Resistance: Not explicitly specified

PHYSICAL:

Dimensions (W x D x H): 7.5″ × 3.875″ × 8.5″ (191 mm × 98.5 mm × 216 mm)
Weight: Not explicitly specified
Color: Not explicitly specified
