AL400ULACM Specifications

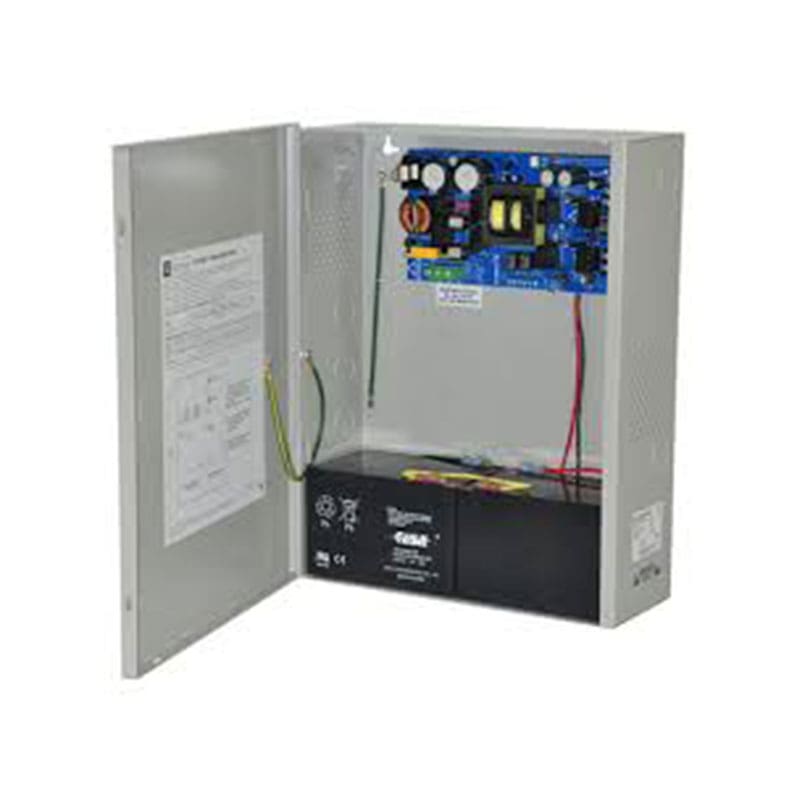

Altronix AL400ULACM Access Power Controller with Power Supply/Charger, 8 Fused Class 2 Relay Outputs, 12/24 VDC @ 4 A, 115 VAC, BC400 Enclosure
Manufacturer: Altronix
Manufacturer Model: AL400ULACM
Product Line: ACM Series
Product Series: Access Power Controller w/ Power Supply/Charger
Product Type: Access Power Controller with Built‑in Power Supply/Charger
Product Name: Altronix AL400ULACM Access Power Controller with Power Supply/Charger
KEY FEATURES:
Number of Outputs: 8 fuse‑protected Class 2 relay outputs
Output Voltage Options: 12 VDC or 24 VDC
Total Output Current: 4 A at 12 VDC or 3 A at 24 VDC
Input Voltage: 115 VAC, 60 Hz
Form Factor: Wall‑mount enclosure (BC400); typical dimensions ~15.5″ H × 12″ W × 4.5″ D
Operation Modes: Supports Fail‑Safe and/or Fail‑Secure outputs
Fire Alarm Disconnect: Individually selectable for any or all outputs
Trigger Input: Supports open‑collector or normally‑open (NO) dry contacts from access control system devices
Supervision: AC fail, battery fail, battery presence (Form “C” contacts)
Built-in Charger: Supports sealed lead-acid or gel batteries; automatic switch-over on AC failure
Indicators: LED status for AC input, DC output, individual relays, and FACP disconnect
PERFORMANCE:
Input Current: Approximately 1.9 A at 115 VAC
Maximum Current per Output: Fuse rated at ~3.5 A per Class 2 output
Total Output Current: 4 A at 12 VDC or 3 A at 24 VDC
ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: 0 °C to 49 °C (32 °F to 120 °F)
Storage Temperature Range: –20 °C to 70 °C (–4 °F to 158 °F)
Operating Humidity: Up to 85% ± 5%
Supervision: AC fail supervision (Form “C” contact), Battery fail/presence supervision (Form “C” contact)
Shock Resistance: Not explicitly specified
Vibration Resistance: Not explicitly specified
PHYSICAL:
Dimensions (W × D × H): ~12″ × 4.5″ × 15.5″ (≈ 304.8 mm × 114.3 mm × 393.7 mm)
Weight: Approximately 10.7 lb (4.85 kg)
Color: Gray (typical enclosure finish)
