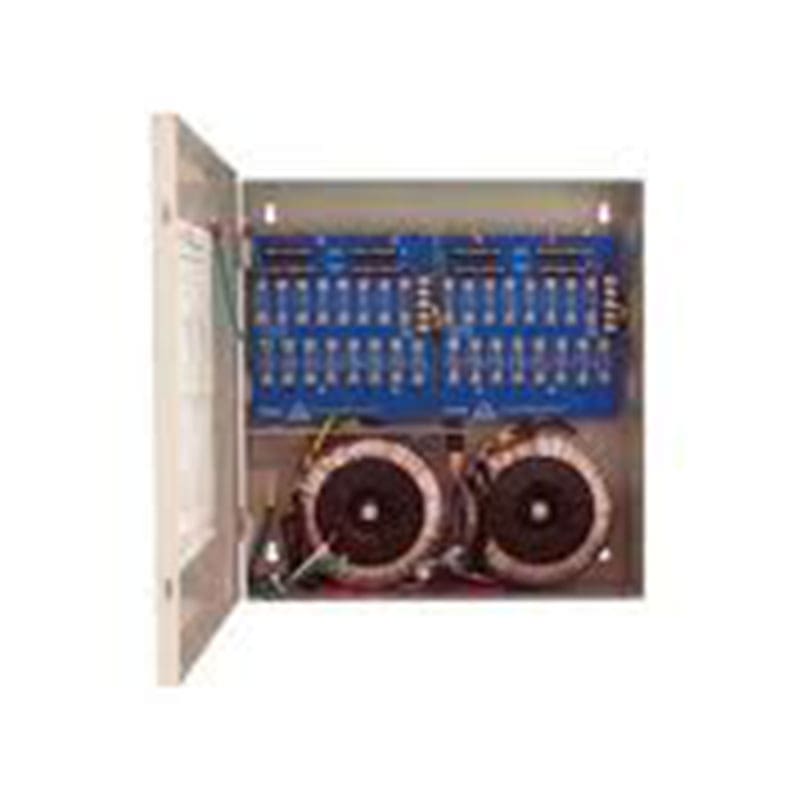

AL168600CB Altronix 8 Output Power Supply at discount

AL168600CB Specifications

Altronix Multi-Output Power Supply, 8 PTC Outputs, 16 VAC or 18 VAC

Manufacturer: Altronix
Manufacturer Model: AL168600CB
Product Line: AL168 Series
Product Series: 8-Output PTC Protected Power Supplies
Product Type: Power Supply (AC)
Product Name: Altronix AL168600CB Multi-Output Power Supply 16/18 VAC 8-PTC Outputs

KEY FEATURES:
Output Protection Type: Eight (8) auto-resettable PTC-protected outputs
Voltage Options: 16 VAC @ 40 A (~700 VA) or 18 VAC @ 36 A (~700 VA)
Form Factor: Wall-mount metal enclosure (BC300 size)
Compatibility: Designed for multiple security systems or access-control panels
Features Supported: Built-in surge suppression, AC power LED indicator, illuminated master power disconnect circuit breaker with manual reset

PERFORMANCE:
Maximum Output Capacity: Up to ~700 VA (16 VAC @ 40 A or 18 VAC @ 36 A)
Random Read IOPS: Not applicable
Random Write IOPS: Not applicable
Sequential Read Speed: Not applicable
Sequential Write Speed: Not applicable

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: 0 °C to 49 °C (32 °F to 120 °F)
Storage Temperature Range: –20 °C to 70 °C (–4 °F to 158 °F)
Operating Humidity: Up to ~85% RH non-condensing
Shock Resistance: Not explicitly specified
Vibration Resistance: Not explicitly specified

PHYSICAL:
Dimensions (W × D × H): 13″ × 3.25″ × 13.5″ (330 mm × 83 mm × 343 mm)
Weight: Approx. 24.9 lb (11.3 kg)
Color: Standard metal enclosure (off-white/grey)
