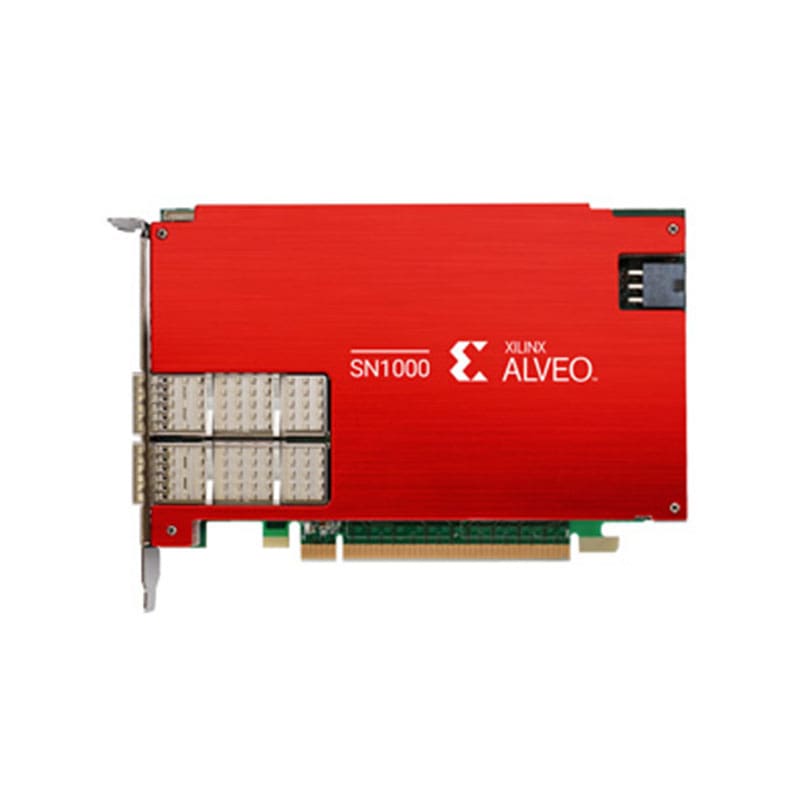

A-SN1022-P4E-PQ Xilinx Alveo SN1022 Network at discount

A‑SN1022‑P4E‑PQ Specifications

AMD Xilinx Alveo SN1000 100 Gigabit Ethernet SmartNIC (Encryption Enabled)

Manufacturer: AMD Xilinx
Manufacturer Model: A‑SN1022‑P4E‑PQ
Product Line: Alveo SmartNIC
Product Series: SN1000
Product Type: 100 Gigabit Ethernet SmartNIC / Network Accelerator Card
Product Name: Alveo SN1000 100 Gigabit Ethernet Card (Encryption Enabled)

KEY FEATURES:
Host Interface: PCI Express Gen3 x16 to host and Gen4 x8/Gen3 x8 links for processor offload
Network Interfaces: 2 × QSFP28 100 GbE ports (supports 100 GbE via Port 1)
FPGA: XCU26 with 1030 K LUTs, 2059 K registers, 1320 DSP slices
Memory: Two 4 GB DDR4 components ×72 with ECC, ~2400 MT/s
Communications Processor: NXP Layerscape LX2162A with 16 Arm v8 Cortex‑A72 cores at up to 2.0 GHz
Cache Buffer: 16 MB cache, 2 MB packet buffer
System Storage: NAND 128 Gb + NOR 512 Mb flash for OS and boot storage
Security/Programmability: Encryption‑enabled build with hardware offloads and support for custom acceleration workloads (P4/HLS/RTL)

PERFORMANCE:
Network Standard: 100 Gigabit Ethernet (100GBase‑X)
Full Duplex Throughput: ~200 Gbps overall
Packet Rate: ~100 Mpps (million packets per second)
Latency: Ultra‑low (≈3 µs typical)
Offload Support: SR‑IOV, tunneling, OVS/DPDK acceleration, IPsec/TLS/SSL encryption offload

ENVIRONMENTAL & RELIABILITY:
Total Electrical Card Load: ~75 W
Thermal Design Power (TDP): ~70 W
Cooling: Passive heat sink design
Operating Temperature: ~30 °C (typical spec)
RoHS3 Compliant (lead‑free)
Country of Origin: Malaysia

PHYSICAL:
Form Factor: Full‑height, half‑length PCIe card
Host Interface: PCI Express Gen3 x16 connection to host
Total Number of Network Ports: 2 × QSFP28 100 GbE interfaces
Dimensions (approx): ~0.7″ × 4.4″ × 6.6″ (H×W×D)

PACK CONTENTS:
A‑SN1022‑P4E‑PQ 100 Gigabit Ethernet SmartNIC
Heat sink and PCIe bracket
Documentation / Quick Start Guide
