8P6G-PCIE-SATA-CARD StarTech.com Controllers at discount

8P6G‑PCIE‑SATA‑CARD Specifications

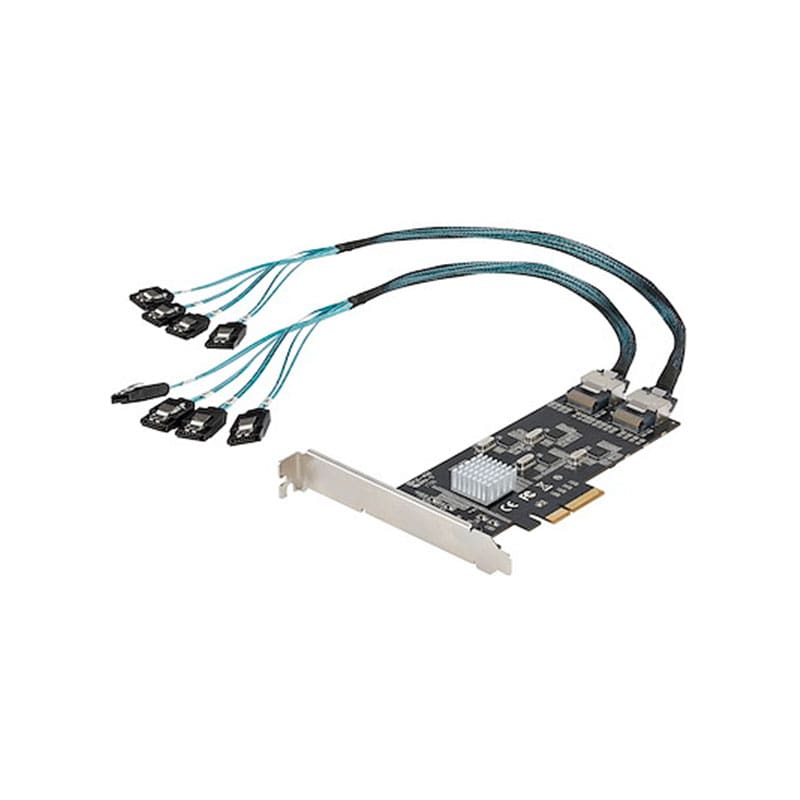

StarTech 8‑Port SATA III PCIe Expansion Card

Manufacturer: StarTech
Manufacturer Model: 8P6G‑PCIE‑SATA‑CARD
Product Line: StarTech SATA Expansion Cards
Product Series: 8‑Port SATA III PCIe Card
Product Type: PCI Express SATA Controller Card
Product Name: StarTech 8‑Port SATA III PCIe Card

KEY FEATURES:
Host Interface: PCI Express 2.0 x4
SATA Ports: 8 × SATA III (6 Gbps) via two internal Mini‑SAS (SFF‑8087) connectors
Adapter Cables: Includes two Mini‑SAS to 4× SATA locking cables
Chipset: Multiple SATA host controllers with PCIe MUX for enhanced compatibility
TRIM Support: Yes
S.M.A.R.T. Support: Yes
Bootable: Yes
Bracket Type: Standard profile installed; low‑profile bracket included
Warranty: 2‑Year StarTech manufacturer warranty

PERFORMANCE:
Maximum Data Transfer Rate: Up to 6 Gbps per SATA port (SATA III)
PCIe Throughput: Up to PCIe Gen 2 x4 aggregate bandwidth
Port Multiplier: Yes (via Mini‑SAS breakout)

ENVIRONMENTAL & RELIABILITY:
Operating Temperature: ~5 °C to ~50 °C
Storage Temperature: ~‑20 °C to ~60 °C
Operating Relative Humidity: ~20 % to ~80 %
Certifications: CE, RoHS compliant

PHYSICAL:
Form Factor: PCI Express plug‑in controller card
Internal Connector Type: 2 × SFF‑8087 Mini‑SAS connectors
Typical Dimensions (approx): Width ~15 mm × Depth ~150 mm × Height ~69 mm
Weight: ~75 g
Product Color: Black PCB

COMPATIBILITY:
Supported Operating Systems:
• Microsoft Windows (XP and newer)
• macOS (10.6.8 and later)
• Linux (kernel 2.6.32 and later)
Software RAID: Supported via OS software RAID tools (e.g., mdadm, Storage Spaces)
