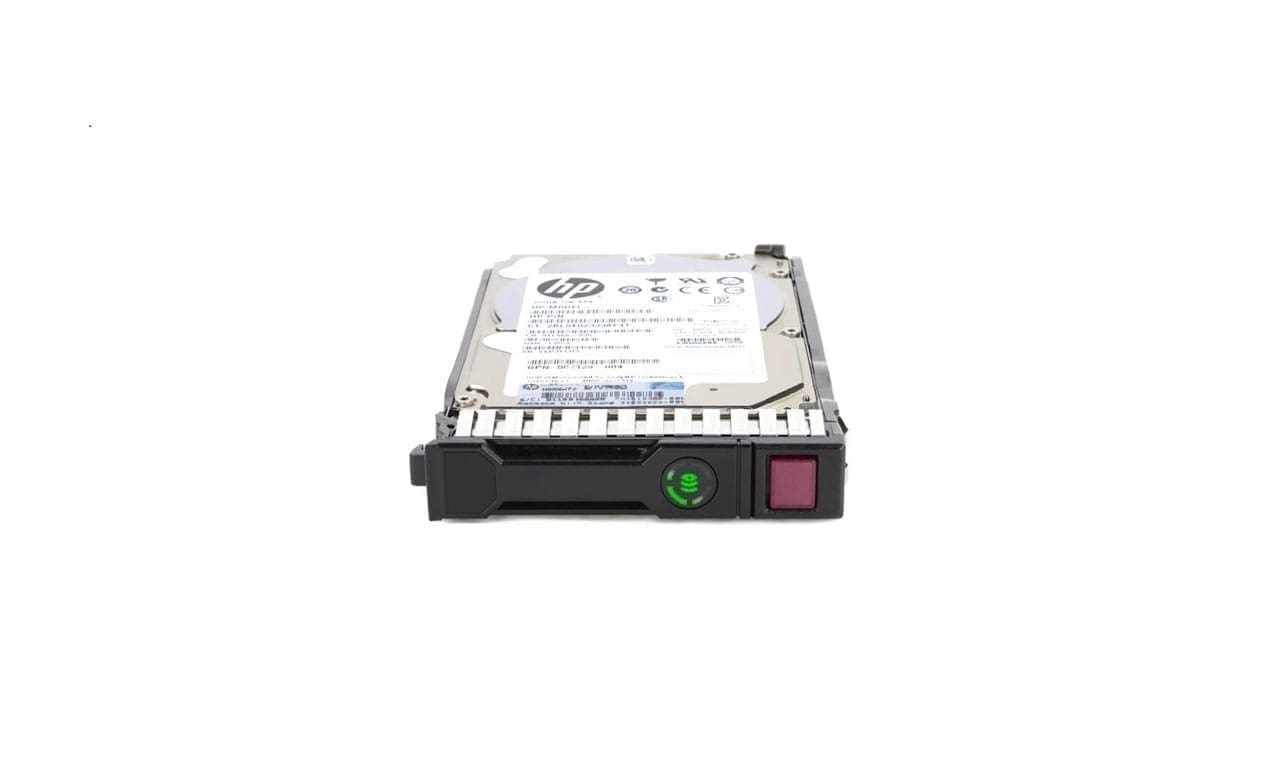

820193-001 HP 2TB 7.2K RPM 3.5 Inches 6G SATA SC LFF Midline Hard

820193-001 Specifications

HPE 820193-001 2 TB 3.5-inch SATA 6 Gb/s 7,200 RPM Midline Hard Drive

KEY FEATURES

Storage Capacity: 2 TB
Interface Type: SATA III (6.0 Gb/s)
Form Factor: 3.5-inch (Large Form Factor – LFF)
Sector Format: 512n (512 bytes native)
Drive Type: Midline (Enterprise-class, bulk data storage)
Target Use: HPE ProLiant Gen8 & Gen9 servers, storage arrays, and backup systems

PERFORMANCE

Maximum Data Transfer Rate: 6 Gb/s
Spindle Speed: 7,200 RPM
Average Seek Time: 7.6 ms (typical)
Average Latency: 4.16 ms
Buffer/Cache: 64 MB (typical for drive family)
Optimized for sequential data throughput and reliable, 24×7 operation

PHYSICAL

Height: 26.1 mm (1.03 in)
Width: 101.6 mm (4.0 in)
Depth: 146.99 mm (5.79 in)
Weight: 1.36 kg (3.00 lb)
Form Factor Type: Hot-swap, HPE SmartDrive carrier compatible

RELIABILITY & ENVIRONMENTAL

Mean Time Between Failures (MTBF): 1.2 million hours
Operating Temperature Range: 5 °C – 55 °C
Non-Operating Temperature Range: –40 °C – 70 °C
Operating Shock Resistance: 70 Gs (2 ms)
Non-Operating Shock Resistance: 300 Gs (2 ms)
Operating Vibration: 0.5 Gs (5 – 300 Hz)
Non-Operating Vibration: 1.0 Gs (5 – 500 Hz)

ADDITIONAL FEATURES

Hot-Swap Capable: Yes (HPE SmartDrive carrier)
Native Command Queuing (NCQ): Yes
Rotational Vibration Safeguard (RVS): Yes
Power Management: Advanced Power Modes supported
Staggered Spin-Up: Yes
SMART Diagnostics: Supported
Compliance: RoHS, WEEE, CE, CSA, TUV, FCC
