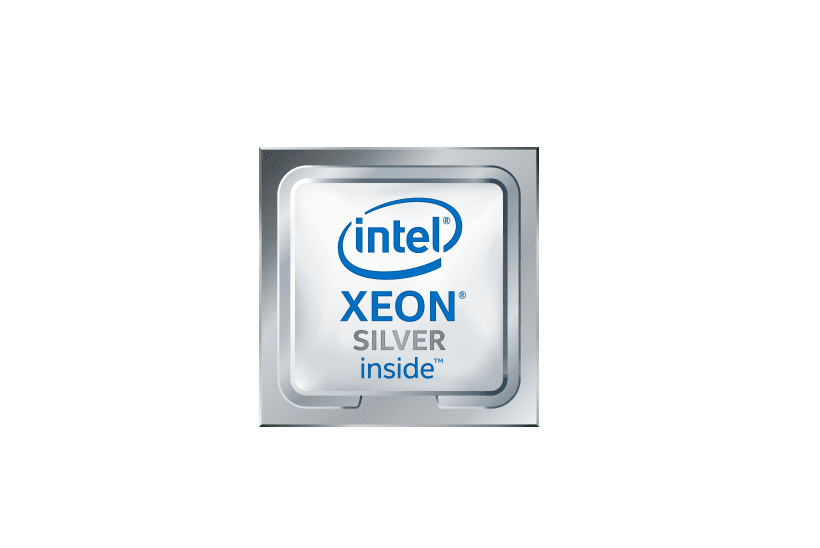

7XG7A05576 Lenovo Intel Xeon 4116 12 Core 2.10 GHz

7XG7A05576 Specifications

Lenovo Intel Xeon Silver 4116 12‑Core Server Processor Option Kit

Manufacturer: Intel (OEM via Lenovo)
Manufacturer Model: 7XG7A05576
Product Line: Intel Xeon Scalable Processor
Product Series: Xeon Silver 4116 (1st Generation)
Product Type: Server CPU / Processor Option Kit
Product Name: Intel Xeon Silver 4116 12‑Core 2.10 GHz Processor
ServerProven
+1

KEY FEATURES:

Processor Cores: 12 cores

Threads: 24 threads

Base Frequency: 2.10 GHz

Max Turbo Frequency: 3.00 GHz

Cache (L3): 16.5 MB

Thermal Design Power (TDP): 85 W

Socket Type: LGA3647

Architecture: 14 nm (Skylake)

Memory Support: DDR4‑SDRAM up to 768 GB

Memory Channels: Hexa‑channel

ECC Memory Support: Yes

64‑Bit Processing: Yes

PCIe Support: PCI Express 3.0 (48 lanes)
LA Systems

PERFORMANCE:

Multi‑Threading: Supported (24 threads)

Enterprise / Server Workload Optimized: Yes

Memory Bandwidth: High throughput hexa‑channel DDR4 memory

Cache Efficiency: 16.5 MB L3 cache for balanced performance
Redcorp

ENVIRONMENTAL & RELIABILITY:

Designed For: Enterprise servers and data centers

Thermal Case Spec (Tcase): ~76 °C typical

Advanced Features: Intel Hyper‑Threading, Intel Turbo Boost Technology, Intel Virtualization (VT‑x), Intel AES New Instructions, Intel Trusted Execution Technology
Redable

PHYSICAL:

Form Factor: Standard server CPU (LGA3647 package)

Typical Dimensions: ~76 mm × 56.5 mm package

Weight: Typical for server processor socket packag
