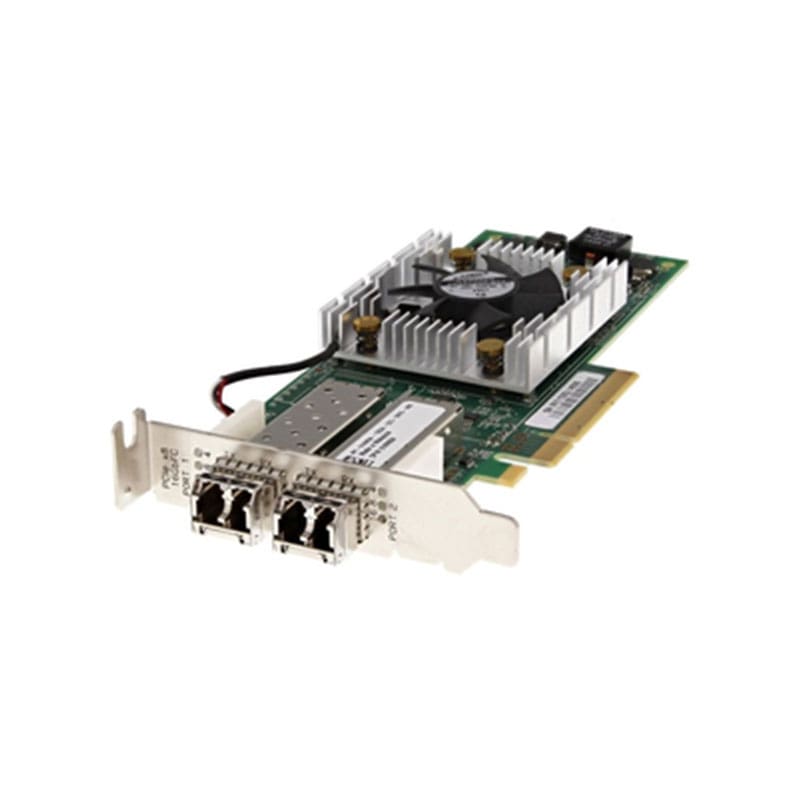

76RF3 Dell Qle2662 16GB SFP+ Host Bus Adapter at discount

76RF3 Specifications

Dell QLogic QLE2662 16 Gb/s Dual‑Port Fibre Channel Host Bus Adapter (HBA)

Manufacturer: Dell
Manufacturer Model: 76RF3
Product Line: Dell Fibre Channel Adapters
Product Series: QLogic QLE2662 Dual‑Port 16 Gb/s
Product Type: Fibre Channel Host Bus Adapter (HBA)
Product Name: Dell QLogic QLE2662 16 Gb/s Dual‑Port Fibre Channel Host Bus Adapter

KEY FEATURES:
Host Interface: PCI Express 3.0 x8
Fibre Channel Protocol Support: Yes (FC)
Number of Ports: 2 × 16 Gb/s Fibre Channel SFP+
Connector Type: SFP+ optical transceivers
Form Factor: Low‑profile adapter card (bracket may be full‑height/low‑profile)
Compatibility: Works in Dell PowerEdge servers (e.g., R310, R430, R520, R530, R610, R630, R715, R720/R720xd, R730, R815, R820, R910, R920, T620, T630, M915)

PERFORMANCE:
Maximum Data Transfer Rate: 16 Gb/s per port (Fibre Channel)
Supported Topologies: Point‑to‑Point, Arbitrated Loop (FC‑AL), Switched Fabric (FC‑SW)
Maximum Number of Nodes: Typically up to 126 in a fabric
Maximum Distance: Up to ~10 km with appropriate optical fiber
Power Consumption: ~11 W

ENVIRONMENTAL & RELIABILITY:
Designed for enterprise SAN and storage networking workloads
Operating Temperature: ~0 °C to ~55 °C
Humidity Tolerance: Typical data‑center humidity ranges (approx. 5 %–90 % non‑condensing)

PHYSICAL:
Form Factor: PCI‑Express adapter card (low‑profile/standard bracket)
Typical Dimensions: Standard PCIe HBA size
Weight: ~0.45 lb (~0.2 kg) typical for host bus adapter card
