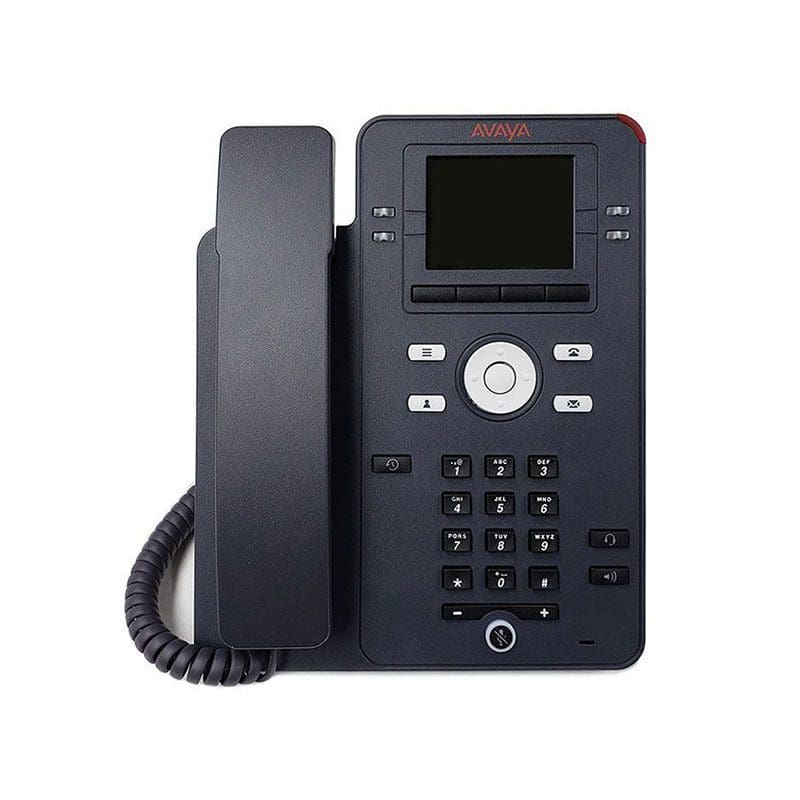

700513917 Avaya Open Sip J139 IP Phone 3PCC Product

700513917 Specifications

Avaya J139 IP Phone (3PCC Variant)

Manufacturer: Avaya
Manufacturer Model: 700513917
Product Line: Avaya J100 Series
Product Series: J139
Product Type: IP Desk Phone
Product Name: Avaya J139 IP Phone

KEY FEATURES:
Display: 2.8″ colour display (~320 × 240 pixels)
Line / Feature Keys: Supports up to 4 line/feature indicators (dual‑colour red/green LEDs)
Soft Keys: 4 context‑sensitive soft keys
Audio: Wideband audio for handset and wired headset; full‑duplex speakerphone
Network / Power: Dual Gigabit Ethernet ports (10/100/1000 Mbps) including secondary port for PC; Power over Ethernet (IEEE 802.3af Class 1) with support for energy‑efficient mode (802.3az)
Protocol Support & Compatibility: SIP signalling protocol (3rd Party Call Control – 3PCC variant) for third‑party SIP platforms; not designed for Avaya Aura®/IP Office™ native control
Form Factor: Desk‑stand with optional wall‑mount capability

PERFORMANCE:
Supported Codecs: G.711 a/µ, G.722, G.726, G.729, and more
Total Number of Lines: Up to 4 line appearances
Concurrent Calls: Multi‑call capability (up to 2 concurrent calls per line appearance as typical for J100 series)
Energy‑Saving Features: Idle/sleep mode via PoE class‑1 design

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: 0 °C to 40 °C (32 °F to 104 °F)
Storage / Non‑Operating Temperature Range: ‑20 °C to 60 °C (‑4 °F to 140 °F)
Operating Humidity: 10% to 95% non‑condensing
Reliability: Enterprise‑grade build quality, designed for business‑user desk‑phone environments

PHYSICAL:
Dimensions (H × W × D): Approx. 170 mm × 155 mm × 71 mm (~6.7″ × 6.1″ × 2.8″)
Weight: Approx. 0.68 kg (~1.5 lb)
Color / Finish: Grey/Anthracite
