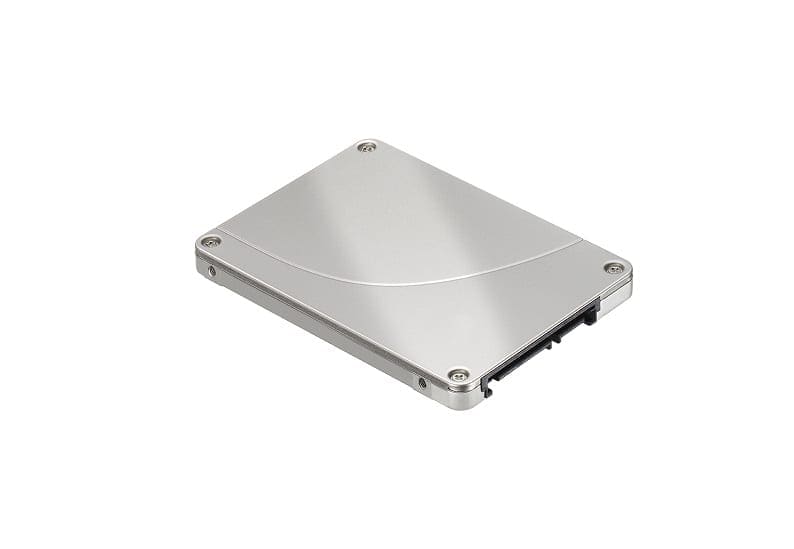

652181-002 HP 128GB MLC SATA 6Gbps 2.5-inch

652181-002 Specifications

HP 128 GB SATA 2.5-inch Solid-State Drive (SSD)

Manufacturer: Hewlett-Packard (HP)
Manufacturer Model: 652181-002
Product Line: HP Enterprise Solid-State Drive
Product Series: 2.5-inch SFF SATA 6G (MLC)
Product Type: Internal Solid-State Drive (SSD)
Product Name: HP 128 GB SATA 6G Enterprise SSD
KEY FEATURES:
Storage Capacity: 128 GB
Interface Type: SATA (6.0 Gb/s – SATA III)
NAND Type: Multi-Level Cell (MLC) NAND Flash
Form Factor: 2.5-inch Small Form Factor (SFF)
Hot-Swap Support: Yes (when installed in compatible HP hot-swap bay)
Compatibility: HP ProLiant and Enterprise servers (e.g., DL360, DL380 series)
PERFORMANCE:
Maximum Sequential Read: Up to ~500 MB/s
Maximum Sequential Write: Up to ~175 MB/s
Interface Bandwidth: SATA 6 Gb/s
Access Time: <1 ms typical (SSD architecture – no moving parts)
ENVIRONMENTAL & RELIABILITY:
Operating Temperature: 0 °C to 60 °C
Shock Resistance: 1,500 G (0.5 ms)
Vibration (operating): 2.17 G RMS (7–800 Hz)
MTBF: ~2 million hours
Reliability Rating: Enterprise-class SSD, 24×7 operation
PHYSICAL:
Form Factor: 2.5-inch Small Form Factor (SFF)
Interface Connector: Standard SATA 7-pin data + 15-pin power
Dimensions: Approx. 100 mm × 70 mm × 7 mm
Weight: ~0.09 kg (~0.2 lb)
