6415H11 Lenovo DB620S 32 Gbit/s 24 at discount

6415H11 Specifications

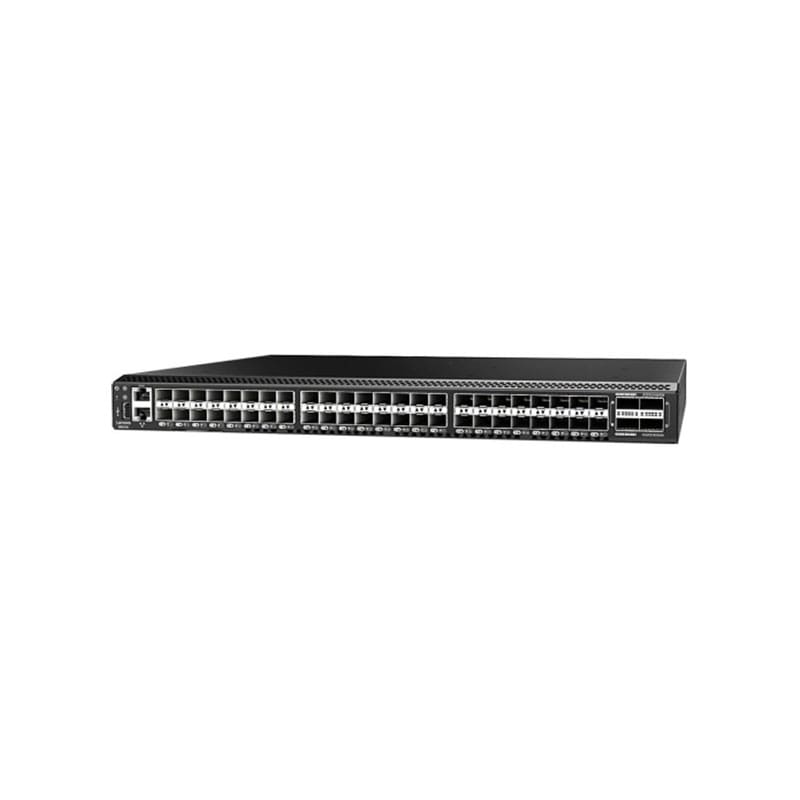

Lenovo ThinkSystem DB620S 24‑Port 32 Gb Fibre Channel Switch (with 24× 32 Gb SWL SFPs, 2 PS, Rail Kit)

Manufacturer: Lenovo
Manufacturer Model: 6415H11
Product Line: Lenovo ThinkSystem DB Series FC SAN Switch
Product Series: DB620S
Product Type: Fibre Channel Switch – Enterprise SAN
Product Name: Lenovo ThinkSystem DB620S 24‑Port 32 Gb FC Switch

KEY FEATURES:
Number of Fibre Channel Ports: 24 initial SFP+ ports (upgradable to 48)
Media type support: 32 Gb/s Fibre Channel SWL SFP+ transceivers included
Non‑blocking architecture; “pay‑as‑you‑grow” licensing for additional ports and QSFP+ interconnects
Redundant hot‑swap power supplies (2× 250 W AC) and N+N cooling redundancy via dual PS and fans

PERFORMANCE:
Maximum port speed supported: 32 Gb Fibre Channel per port (auto‑sensing 4/8/16/32 Gb/s)
QSFP+ ports for up to 128 Gb Fibre Channel inter‑switch links (4×32 Gb) in breakout or trunk mode

ENVIRONMENTAL & RELIABILITY:
Designed for enterprise storage area network (SAN) environments with high‑availability features (redundant PS/fans, licensed scalability)
Operating temperature: 0 °C to 40 °C; Non‑operating: ‑25 °C to +70 °C

PHYSICAL:
Form Factor: 1U rack‑mountable SAN switch
Dimensions: Height ~44 mm (1.7 in) × Width ~440 mm (17.3 in) × Depth ~356 mm (14.0 in)
Weight: Empty ~7.7 kg (17.0 lb); Fully configured ~8.5 kg (18.8 lb)
