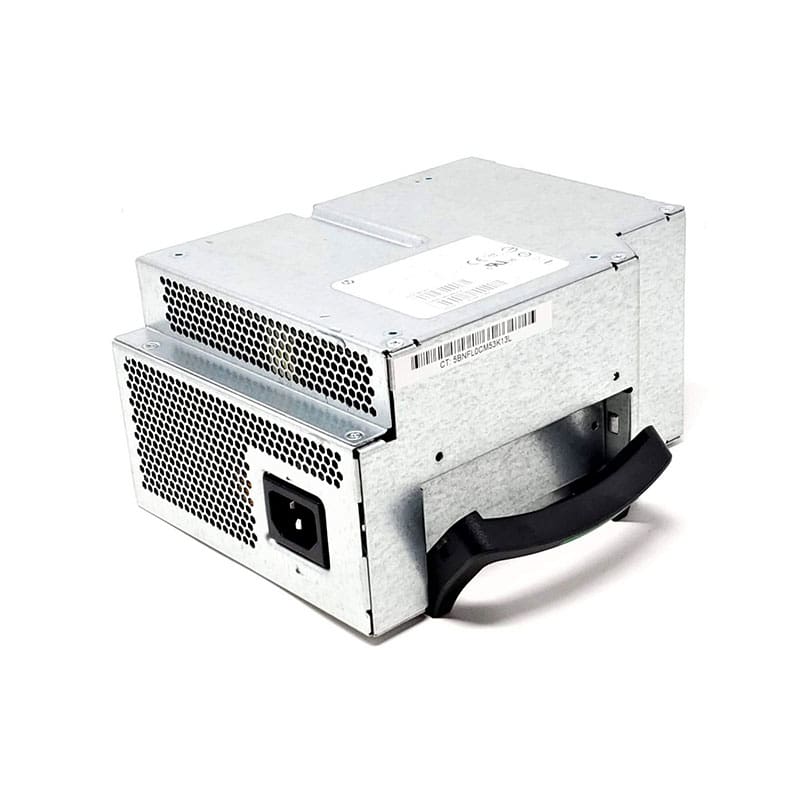

623194-002 HP 800 Watts Power Supply For Z620 at discount

623194-002 Specifications

HP 800 W Power Supply for Z620 Workstation

Manufacturer: HP
Manufacturer Model: 623194-002
Product Line: HP Workstation Power Supplies
Product Series: 800 W ATX Module (model S10-800P1A)
Product Type: Internal Power Supply Unit (Non-Hot-Swap)
Product Name: HP 800 W Power Supply for Z620 Workstation

KEY FEATURES:
Maximum Power Output: ~800 W
Input Voltage Range: AC 100-240 V ~ / 9.7 A, 50/60 Hz / 118 V ~ 9.7 A @ 400 Hz
Rails Output Example: V12-D = ~18 A, V12-B = ~18 A, V12-S = ~18 A, +11 VSB ≈2.3 A
Form Factor: Standard workstation internal PSU (approx. 140 mm × 96 mm × 183 mm)

PERFORMANCE:
Optimized for HP Z620 workstation environments with high wattage to support dual-CPU, dual-GPU configurations.
Single-fan cooling, designed for consistent performance under heavy workstation loads.

ENVIRONMENTAL & RELIABILITY:
Designed for continuous workstation use; supports long operational hours under sustained load.
Compliance Standards: RoHS and CE Certified.

PHYSICAL:
Form Factor: Internal fixed power supply module (not hot-swappable)
Typical Dimensions: Approx. 140 mm × 96 mm × 183 mm
Weight: Approx. 4.5 kg (shipping weight ~10 lbs)
