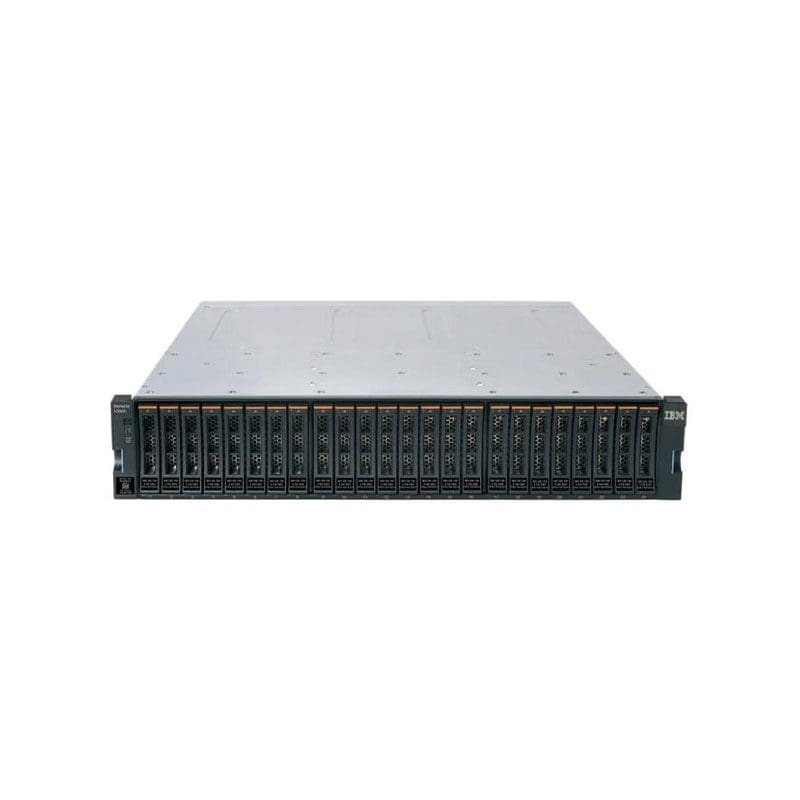

6099SEU IBM StorWize V3700 2.5-inch Storage Expansion Unit

6099SEU Specifications

IBM/Lenovo Storwize V3700 2.5‑inch Storage Expansion Unit (Hot‑Swap Chassis)

Manufacturer: IBM / Lenovo
Manufacturer Model: 6099SEU
Product Line: IBM Storwize V3700 Expansion Enclosure
Product Series: 2.5‑inch SFF Storage Expansion Unit
Product Type: Storage Expansion Chassis (Hot‑Swap)
Product Name: IBM Storwize V3700 2.5″ Storage Expansion Unit

KEY FEATURES:
Supported Storage Capacity: Up to ~28.8 TB
Storage Drive Interface: SAS (Serial Attached SCSI)
Form Factor: 2U Rack‑mount chassis for 2.5‑inch drives (SFF)
Hot‑Swap Support: Yes — hot‑swappable drive bays supported
Supported Drive Bays: 24 × 2.5″ drives

PERFORMANCE:
RAID Levels Supported: 0, 1, 5, 6
Maximum Supported Storage Capacity: ~28.8 TB

ENVIRONMENTAL & RELIABILITY:
Chassis designed for enterprise storage expansion units with hot‑swap drive capability
Redundant power supply support: Dual PSUs (405 W each)
Operating Temperature: 10 °C – 35 °C
Storage Temperature: ‑10 °C – 50 °C
Operating Humidity: 10 % – 90 % RH
Storage Humidity: 20 % – 80 % RH

PHYSICAL:
Form Factor: 2U Rack‑mount chassis, 19‑inch wide, SFF drive bays
Dimensions: Approx. 483 mm (W) × 556 mm (D) × 87 mm (H)
Weight: ~28.3 kg
