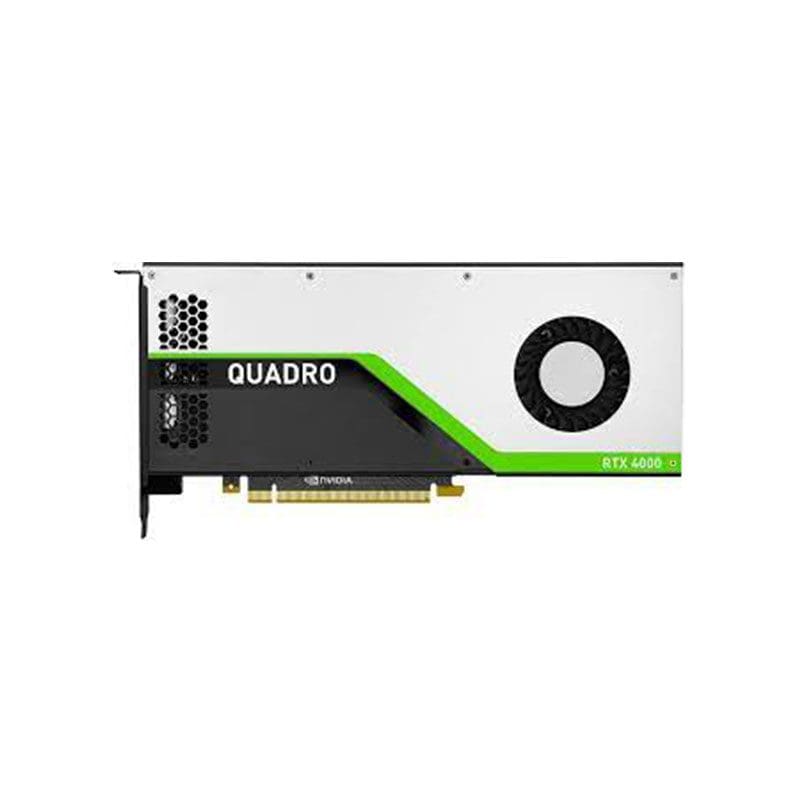

5JV89AT HP NVIDIA Quadro RTX4000 8GB

5JV89AT Specifications

HP NVIDIA Quadro RTX 4000 8GB GDDR6 PCIe Graphics Card

Manufacturer: HP / NVIDIA
Manufacturer Model: 5JV89AT
Product Line: NVIDIA Quadro
Product Series: RTX 4000
Product Type: Workstation Graphics Card
Product Name: HP NVIDIA Quadro RTX 4000 8GB GDDR6 PCIe Graphics Card

KEY FEATURES:
Graphics Processor: NVIDIA Quadro RTX 4000
CUDA Cores: 2304
Tensor Cores: 288
RT Cores: 36
Memory Size: 8GB GDDR6
Memory Interface Width: 256‑bit
Interface Type: PCI Express 3.0 x16
Display Outputs: 3 × DisplayPort 1.4 + 1 × USB‑C
Form Factor: Plug‑in Card
Compatibility: Designed for HP workstations with PCIe 3.0 x16 slot
Features Supported: Real‑time ray tracing, AI acceleration, professional 3D graphics workloads

PERFORMANCE:
Maximum Digital Resolution: Up to 7680 × 4320
Supported APIs: DirectX 12, OpenGL 4.5, OpenCL, Vulkan
Memory Bandwidth: ~416 GB/s
Power Consumption (TDP): ~160 W
Random Read IOPS: Not explicitly specified
Random Write IOPS: Not explicitly specified
Sequential Read Speed: Not explicitly specified
Sequential Write Speed: Not explicitly specified

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: Not explicitly specified
Storage Temperature Range: Not explicitly specified
Operating Humidity: Not explicitly specified
Shock Resistance: Not explicitly specified
Vibration Resistance: Not explicitly specified
Cooling: Active cooling (single fan)

PHYSICAL:
Dimensions (W x D x H): ~10.5″ x 4.4″ (single‑slot)
Weight: Not explicitly specified
Color: Not explicitly specified
