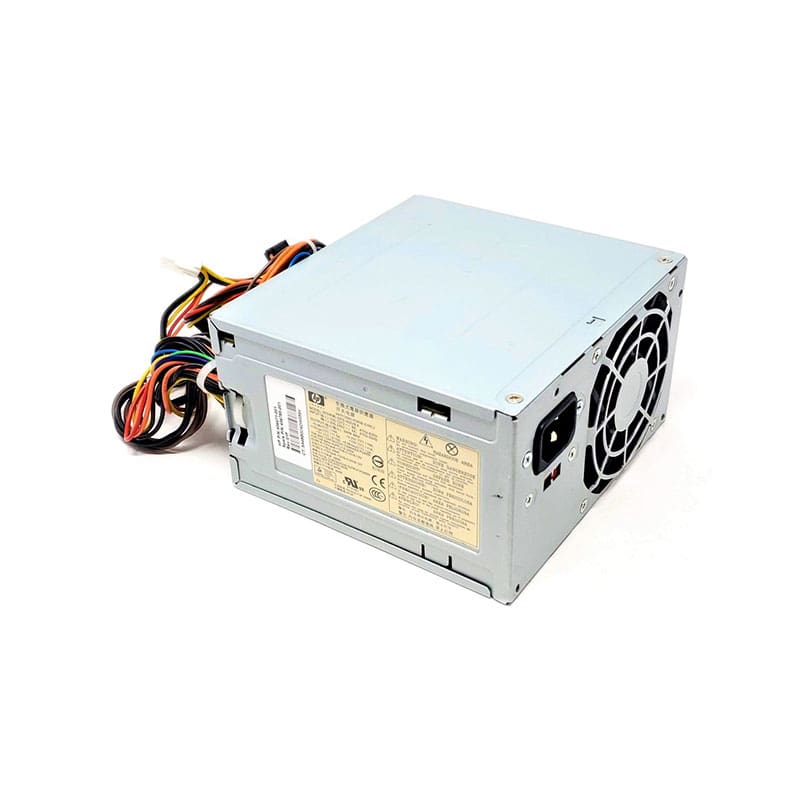

508155-001 HP 300 Watts 100-240V Power Supply at discount

508155-001 Specifications

HP 300W ATX Power Supply Unit

Manufacturer: HP
Manufacturer Model: 508155-001
Product Line: HP Desktop Power Supplies
Product Series: 300W ATX 12V Power Supply for HP Business Desktops
Product Type: Internal Power Supply Unit (PSU)
Product Name: HP 300W 100–240V AC ATX Power Supply (Part 508155-001)
KEY FEATURES:
Power Output: 300 Watts (Maximum)
Input Voltage Range: 100–240V AC, 50–60Hz (auto-range)
Form Factor: Standard ATX internal desktop PSU
Connector Types: 24-pin ATX main power connector, 4-pin +12V CPU connector, SATA and Molex peripheral connectors
Efficiency / Certification: Approximately 85% efficient (D5 rated version)
PERFORMANCE:
Designed for HP desktops such as HP Compaq dc5700, dc5750, dc5800, dc5850, and HP xw4550 / xw4600 workstations
Output Rails: +12V, +5V, +3.3V, -12V, +5VSB standard ATX configuration
Typical Dimensions: 150 mm × 140 mm × 86 mm
ENVIRONMENTAL & RELIABILITY:
Supports 100–240V input range for worldwide operation
Designed for continuous use in HP business desktops
Standard desktop PSU reliability, MTBF not specified
PHYSICAL:
Form Factor: Internal ATX PSU for desktop chassis
Weight: Approximately 1 kg
Color: OEM HP silver/gray finish
