210-APHS Dell PowerSwitch S5224F-ON GE Switch at discount

210-APHS  Specifications

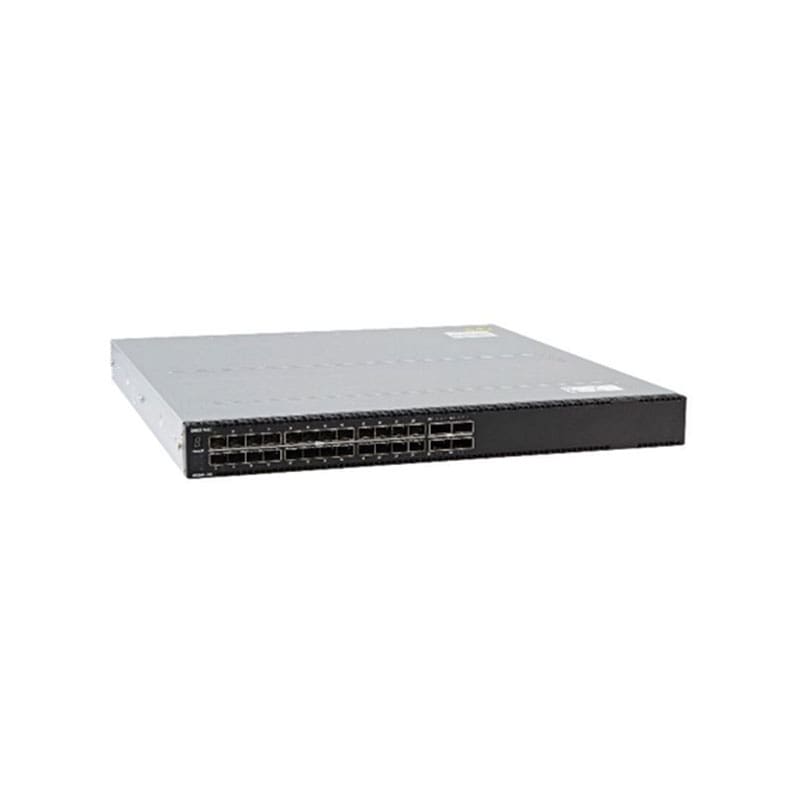

Dell 210‑APHS PowerSwitch S5224F‑ON 24×25 GbE SFP28 + 4×100 GbE QSFP28 Switch

Manufacturer: Dell
Manufacturer Model: 210-APHS
Product Line: Dell PowerSwitch
Product Series: S5224F‑ON
Product Type: Layer 3 Managed Network Switch
Product Name: Dell 210‑APHS PowerSwitch S5224F‑ON 24×25 GbE SFP28 + 4×100 GbE QSFP28 Switch

KEY FEATURES:
Port Configuration: 24×25 GbE SFP28 ports + 4×100 GbE QSFP28 ports
Switching Capacity / Fabric Bandwidth: ~1.08 Tbps (2.16 Tbps full-duplex)
MAC Address Table: up to ~288,000 entries
Routing Table (IPv4): ~128,000 entries
Routing Table (IPv6): ~64,000 entries
Supported Standards & Protocols: IEEE 802.1D, 802.1Q, 802.1p, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s, LLDP (802.1AB), 802.1Qbb, 802.1Qaz
Power Redundancy / Form Factor: 1U rack-mountable; dual internal hot-swappable AC power supplies

PERFORMANCE:
Maximum Switching Fabric: ~1.08 Tbps (2.16 Tbps full-duplex)
Forwarding Rate: ~720 Mpps
VLAN Capacity: ~4,000 VLANs
Link Aggregation Groups (LAGs): up to 16 member ports per group, up to 128 groups

ENVIRONMENTAL & RELIABILITY:
Power Input: AC 100–240 V, 50/60 Hz
Operating Temperature Range: 0 °C to 45 °C
Storage Temperature Range: ‑40 °C to 70 °C
Operating Humidity: 5 % to 90 % (non-condensing)
Shock Resistance: Not explicitly specified
Vibration Resistance: Not explicitly specified

PHYSICAL:
Dimensions (W × D × H): ~434 mm × 460 mm × 44 mm
Weight: Approx. 9.7 kg
Color / Finish: Black (standard enterprise rack switch finish)
