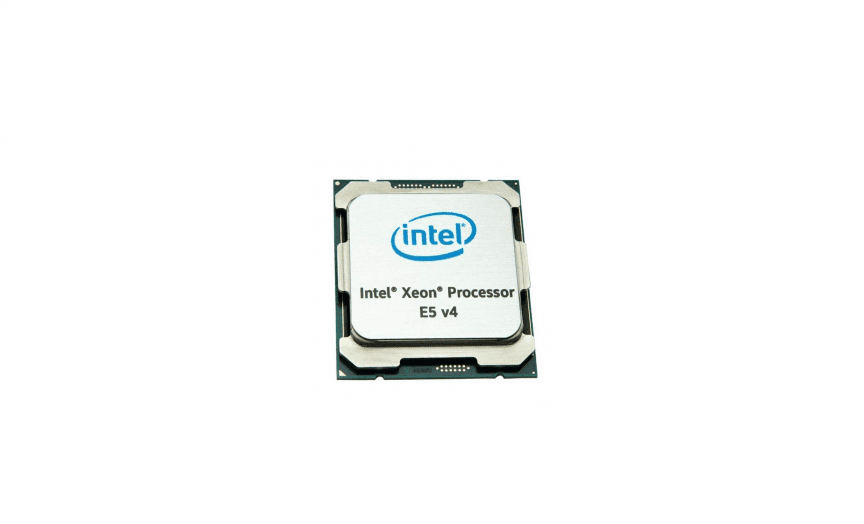

00YJ694 Lenovo Intel Xeon E5-2623V4 Quad-Core

00YJ694 Specifications

Lenovo Intel Xeon E5‑2623 v4 4‑Core Server Processor

Manufacturer: Intel (OEM supplied for Lenovo)
Manufacturer Model: 00YJ694
Product Line: Intel Xeon Processor (E5‑2600 v4 family)
Product Series: Xeon E5‑2623 v4
Product Type: Server CPU / Processor
Product Name: Intel Xeon E5‑2623 v4 4‑Core 2.60 GHz Processor

KEY FEATURES:

Processor Cores: 4 cores

Threads: 8 threads

Base Frequency: 2.60 GHz

Max Turbo Frequency: Up to ~3.20 GHz (with Intel Turbo Boost)

Cache (L3): 10 MB Smart Cache

Cache (L2): 1 MB (aggregate)

Thermal Design Power (TDP): 85 W

Socket Type: LGA 2011‑3 (Socket R)

Architecture: 14 nm (Broadwell)

Instruction Set: 64‑bit

PCI Express Support: PCIe 3.0, up to 40 lanes

Advanced Technology: Intel Hyper‑Threading, Intel Virtualization (VT‑x, VT‑d), Intel AES‑NI, Intel SpeedStep

PERFORMANCE:

Multi‑Threading: Supported (8 threads)

Memory Support: Quad‑channel DDR4‑SDRAM

Maximum Memory Supported: Up to ~1.54 TB

Memory Clock Speeds: 1600 / 1866 / 2133 MHz

Memory Bandwidth: High throughput via quad‑channel memory configuration

ENVIRONMENTAL & RELIABILITY:

Designed For: Enterprise server and workstation environments

Intel Security Technologies: Trusted Execution, Secure Key

Thermal Case Specification (Tcase): ~73 °C typical

ECC Support: Yes, for server‑grade reliability

PHYSICAL:

Form Factor: Standard server CPU (LGA2011‑3)

Typical Dimensions: Standard server processor package

Weight: Typical for high‑performance server CPUs
