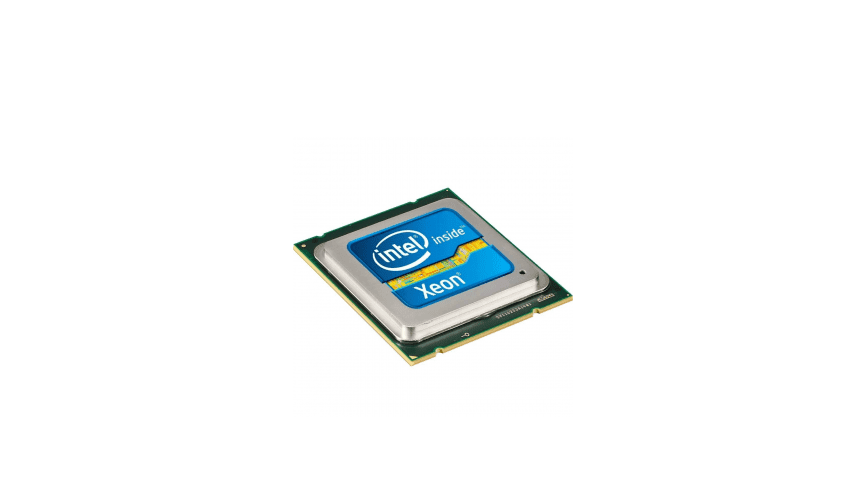

00YD960 Lenovo Intel Xeon E5-2690 V3 12 Core 2.60GHz

00YD960 Specifications

Lenovo Intel Xeon E5‑2690 v4 2.60 GHz 14‑Core Server Processor

Manufacturer: Lenovo / Intel
Manufacturer Model: 00YD960
Product Line: Intel Xeon E5 v4 Series
Product Series: Xeon E5‑2690 v4
Product Type: Server Processor Kit
Product Name: Lenovo Intel Xeon E5‑2690 v4 2.60 GHz 14‑Core CPU

KEY FEATURES:
• Processor Model: Intel Xeon E5‑2690 v4
• Cores / Threads: 14 / 28
• Base Clock Speed: 2.60 GHz
• Max Turbo Frequency: ~3.50 GHz
• Cache (L3): 35 MB
• Cache (L2): ~3.5 MB
• Lithography: 14 nm
• Socket Type: LGA 2011‑v3 (FCLGA2011‑3)
• Thermal Design Power (TDP): 135 W
• 64‑bit Processing Support: Yes

PERFORMANCE:
• Memory Support: DDR4‑SDRAM
• Memory Channels: Quad‑channel
• Maximum Supported Memory: Up to ~1.54 TB
• System Bus Rate (QPI): 9.6 GT/s
• Supported Memory Clock Speeds: 1600 MHz, 1866 MHz, 2133 MHz, 2400 MHz
• Supported Instruction Sets: AVX 2.0, Intel Turbo Boost Technology 2.0, Intel Hyper‑Threading Technology, Intel Virtualization (VT‑x / VT‑d), Intel AES‑NI, Intel SpeedStep, Intel Secure Key, Intel OS Guard, Intel TSX‑NI
• Typical Use Case: Enterprise servers, virtualization, high‑performance workloads

ENVIRONMENTAL & RELIABILITY:
• Designed for continuous server operation
• ECC memory support for improved data integrity
• Operating Thermal Case (Tcase): ~89 °C

PHYSICAL:
• Package / Socket: FCLGA2011‑3 CPU
• Typical Dimensions: Standard server CPU package
• Weight: Standard processor assembly
