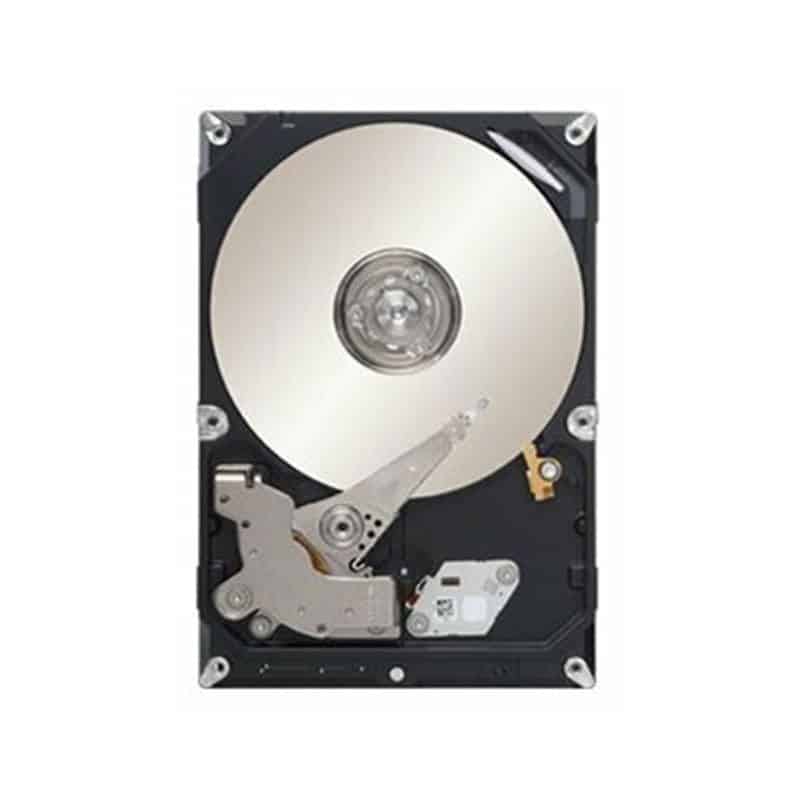

00Y5776 IBM 2TB 7200RPM SAS 6Gbps Nearline 3.5-inch

00Y5776 Specifications

IBM / Lenovo 2 TB 7,200 RPM SAS 6 Gb/s 3.5-inch Hard Disk Drive

Manufacturer: IBM (Lenovo)
Manufacturer Model: 00Y5776
Product Line: IBM Enterprise SAS HDD
Product Series: 3.5-inch Large Form Factor (LFF) SAS 7.2K
Product Type: Internal Hard Disk Drive (Hot-Swap)
Product Name: IBM 2 TB 7.2K SAS HDD

KEY FEATURES:
Storage Capacity: 2 TB
Interface Type: SAS (6 Gb/s)
Rotational Speed: 7,200 RPM
Form Factor: 3.5-inch (LFF)
Hot-Swap Support: Yes (designed for enterprise / storage-array use)
Cache (Buffer) Size: 64 MB

PERFORMANCE:
Maximum Data Transfer Rate: ~151 MB/s (sustained)
Average Seek Time: ~9 ms
Average Latency: ~4.17 ms

ENVIRONMENTAL & RELIABILITY:
Designed for enterprise server/array environments with hot-swap capability
Reliability Rating: Enterprise-class, 24×7 operation
MTBF: ~1.2 million hours (approximate)

PHYSICAL:
Form Factor: 3.5-inch Large Form Factor (LFF) drive
Typical Dimensions: Standard 3.5″ drive (approx. 146 mm × 101.6 mm × 25.4 mm)
Weight: ~0.82 kg (~2.25 lbs)
